MS115L-B02-G

Active

Menics

COMPLETE UNIT GRN LED FLASH

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT GRN LED FLASH

Technical Specifications

Parameters and characteristics for this part

Specification	MS115L-B02-G

Function - Lighting	Steady, Flashing
Ingress Protection	IP65 - Dust Tight, Water Resistant
Light Color	Green
Number of Stacks	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply	24 VAC

Part	Termination Style	Light Color	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Function - Lighting	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Stacks	Voltage - Supply
Menics MS115L-BFF-G	Wire Leads	Green	IP65 - Dust Tight Water Resistant	240 VAC	90 VAC	Flashing Steady	Complete Unit	-20 C	40 °C	1
Menics MS115L-FFF-C	Wire Leads	Clear	IP65 - Dust Tight Water Resistant	240 VAC	90 VAC	Flashing Steady	Complete Unit	-20 C	40 °C	1
Menics MS115L-B02-C	Wire Leads	Clear	IP65 - Dust Tight Water Resistant			Flashing Steady	Complete Unit	-20 C	40 °C	1	24 VAC
Menics MS115L-FFF-Y	Wire Leads	Yellow	IP65 - Dust Tight Water Resistant	240 VAC	90 VAC	Flashing Steady	Complete Unit	-20 C	40 °C	1
Menics MS115L-BFF-C	Wire Leads	Clear	IP65 - Dust Tight Water Resistant	240 VAC	90 VAC	Flashing Steady	Complete Unit	-20 C	40 °C	1
Menics MS115L-F02-Y	Wire Leads	Yellow	IP65 - Dust Tight Water Resistant			Flashing Steady	Complete Unit	-20 C	40 °C	1	24 VAC
Menics MS115L-FFF-G	Wire Leads	Green	IP65 - Dust Tight Water Resistant	240 VAC	90 VAC	Flashing Steady	Complete Unit	-20 C	40 °C	1
Menics MS115L-BFF-B	Wire Leads		IP65 - Dust Tight Water Resistant	240 VAC	90 VAC	Flashing Steady	Complete Unit	-20 C	40 °C	1
Menics MS115L-FFF-B	Wire Leads		IP65 - Dust Tight Water Resistant	240 VAC	90 VAC	Flashing Steady	Complete Unit	-20 C	40 °C	1
Menics MS115L-FFF-R	Wire Leads	Red	IP65 - Dust Tight Water Resistant	240 VAC	90 VAC	Flashing Steady	Complete Unit	-20 C	40 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 112.95

General part information

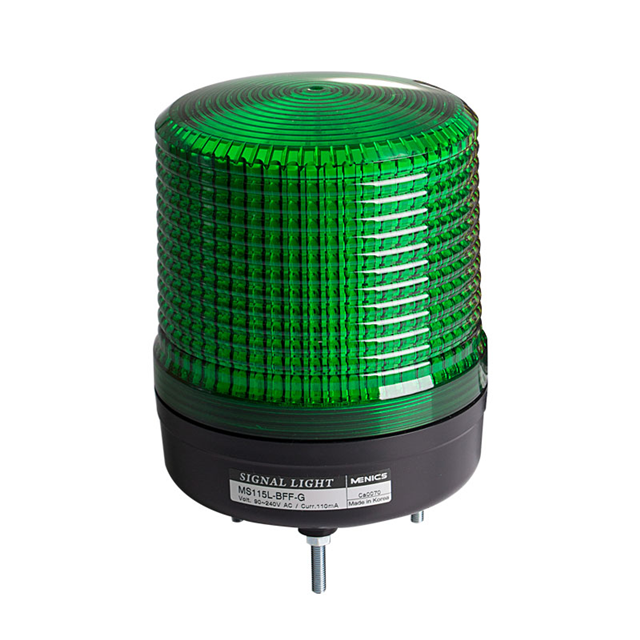

Stack Light Complete Unit Green LED Wire Leads
