1416790
ObsoletePhoenix Contact
MODULAR CONNECTORS / ETHERNET CONNECTORS VS-PP-R-1XRJ45-SCC
1416790
ObsoletePhoenix Contact
MODULAR CONNECTORS / ETHERNET CONNECTORS VS-PP-R-1XRJ45-SCC
Description
General part information
1416790

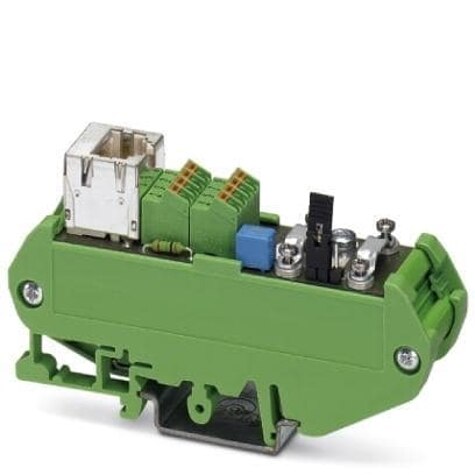

8 Position Interface Module Terminal Blocks - Screw Connection To RJ45 Jack
Technical Specifications
Parameters and characteristics for this part
| Specification | 1416790 |
|---|---|
| Control Side Connection | RJ45 Jack |
| Length | 3.528 in |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -15 °C |
| Positions / Poles | 8 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 60 VDC |
| Width | 0.969 in |
