7-1377173-7

Active

TE Connectivity AMP Connectors

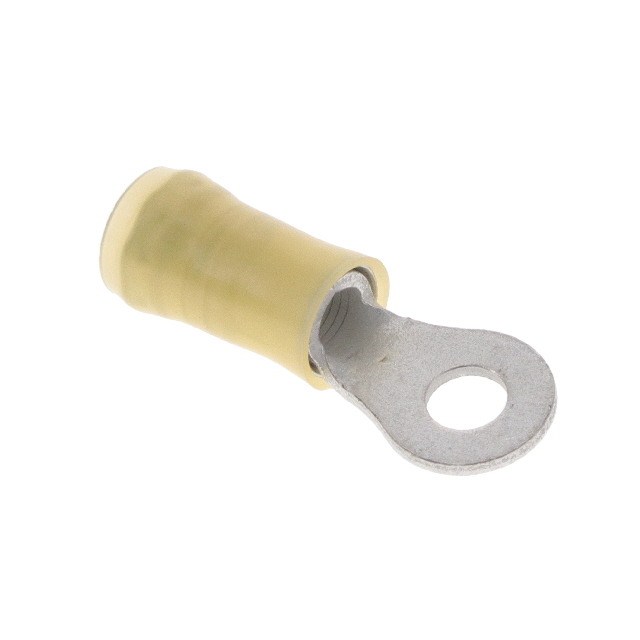

CONN RING CIRC 10-12AWG #8 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7-1377173-7

Active

TE Connectivity AMP Connectors

CONN RING CIRC 10-12AWG #8 CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.24
		10	$ 1.03
		25	$ 0.95
		50	$ 0.90
		100	$ 0.85
		250	$ 0.79
		500	$ 0.75
		1000	$ 0.71

Description

General part information

1377173 Series

Ring Terminal Connector 8 Stud Circular 10-12 AWG Crimp

Documents

Technical documentation and resources

Datasheet

Specification	7-1377173-7	1377173 Series

Color	Yellow	Yellow, Red, Natural, Blue
Contact Finish	Tin	Tin
Contact Material	Copper	Copper
Features	Serrated Termination	Serrated Termination, Serrated Mating Area
Insulation	Insulated	Insulated, Fully Insulated
