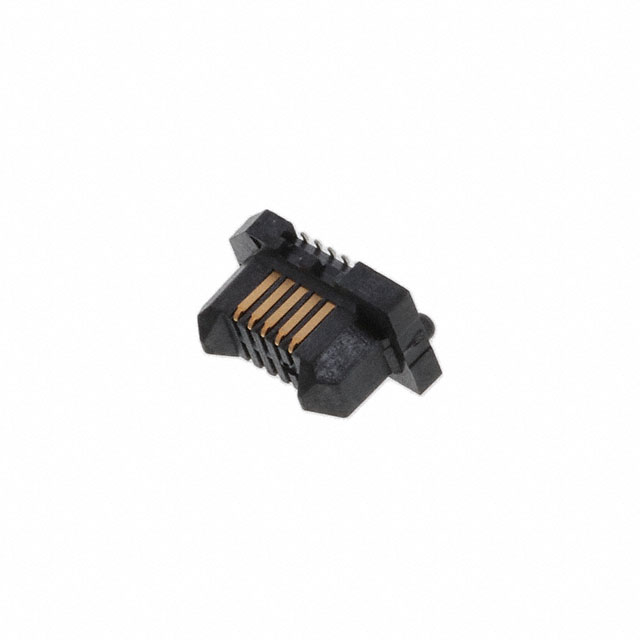

ERM8-005-02.0-L-DV-TR
ActiveSamtec Inc.
CONN MICRO HIGH SPEED TERMINAL STRIP HDR 10 POS 0.8MM SOLDER ST TOP ENTRY SMD EDGE RATE® T/R
Deep-Dive with AI
Search across all available documentation for this part.
ERM8-005-02.0-L-DV-TR
ActiveSamtec Inc.
CONN MICRO HIGH SPEED TERMINAL STRIP HDR 10 POS 0.8MM SOLDER ST TOP ENTRY SMD EDGE RATE® T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERM8-005-02.0-L-DV-TR |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide |
| Height Above Board | 5.97 mm |
| Height Above Board | 0.235 in |
| Mated Stacking Heights | 7 mm, 12 mm, 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.12 | |
| 10 | $ 3.92 | |||
| 25 | $ 3.53 | |||
| 50 | $ 3.27 | |||
| 100 | $ 3.03 | |||
| Digi-Reel® | 1 | $ 5.12 | ||
| 10 | $ 3.92 | |||
| 25 | $ 3.53 | |||
| 50 | $ 3.27 | |||
| 100 | $ 3.03 | |||
| Tape & Reel (TR) | 450 | $ 2.59 | ||
| 900 | $ 2.42 | |||
| 1350 | $ 2.32 | |||
| 2250 | $ 2.21 | |||
| 3150 | $ 2.14 | |||
| 4500 | $ 2.11 | |||
Description
General part information
ERM8-005 Series
10 Position Connector Header, Center Strip Contacts Surface Mount Gold
