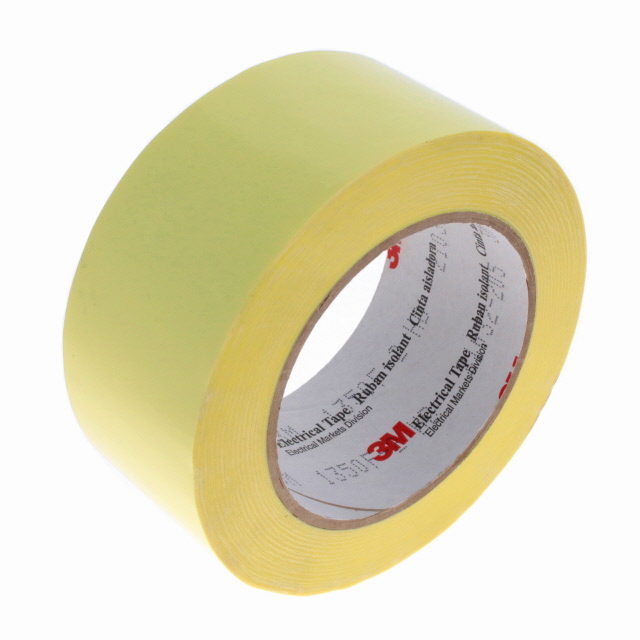

Specification	1350F-2Y-2-72

Adhesive	Acrylic
Backing	Polyester Film
Carrier	Polyester Film
Color	Yellow
Length (ft)	216 ft
Length (yd)	72 yd
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Tape Type	Electrical
Temperature Range (Max)	266 °F
Thickness	0.0035 in
Thickness - Adhesive	0.001 in
Thickness - Backing, Carrier	0.002 in
Width	2 in

1350F Series

...

Part	Shelf Life Start	Shelf Life	Thickness	Backing	Carrier	Thickness - Adhesive	Color	Length (yd)	Length (ft)	Width	Temperature Range (Max)	Tape Type	Adhesive	Thickness - Backing, Carrier
3M (TC) 3M 1350F-2W 0.313" X 72YD	Date of Manufacture	60 Months	0.0035 in	Polyester Film	Polyester Film	0.001 in	White	72 yd	216 ft	0.31 in	266 °F	Electrical	Acrylic	0.002 in
3M (TC) 1350F-2W-4-72	Date of Manufacture	60 Months	0.0035 in	Polyester Film	Polyester Film	0.001 in	White	72 yd	216 ft	4 in	266 °F	Electrical	Acrylic	0.002 in
3M (TC) 1350F-1W-1.875-72	Date of Manufacture	60 Months	0.0025 in	Polyester Film	Polyester Film	0.0015 in	White	72 yd	216 ft	1.88 in	266 °F	Film	Acrylic	0.001 in
3M (TC) 3M 1350F-1Y 2.83" X 72YD	Date of Manufacture	60 Months	0.0025 in	Polyester Film	Polyester Film	0.0015 in	Yellow	72 yd	216 ft	2.83 in	266 °F	Film	Acrylic	0.001 in
3M (TC) 1350F-1Y-0.875-72	Date of Manufacture	60 Months	0.0025 in	Polyester Film	Polyester Film	0.0015 in	Yellow	72 yd	216 ft	0.88 in	266 °F	Film	Acrylic	0.001 in
3M (TC) 3M 1350F-1B 0.625" X 72YD	Date of Manufacture	60 Months	0.0025 in	Polyester Film	Polyester Film	0.0015 in	Black	72 yd	216 ft	0.63 in	266 °F	Film	Acrylic	0.001 in
3M (TC) 3M 1350F-1 6" X 72YD-YELLOW	Date of Manufacture	60 Months	0.0025 in	Polyester Film	Polyester Film	0.0015 in	Yellow	72 yd	216 ft	6 in	266 °F	Film	Acrylic	0.001 in
3M (TC) 3M 1350F-2 1.89" X 72YD-WHITE	Date of Manufacture	60 Months	0.0035 in	Polyester Film	Polyester Film	0.001 in	White	72 yd	216 ft	1.89 in	266 °F	Electrical	Acrylic	0.002 in
3M (TC) 1350F-1W-4-72	Date of Manufacture	60 Months	0.0025 in	Polyester Film	Polyester Film	0.0015 in	White	72 yd	216 ft	4 in	266 °F	Film	Acrylic	0.001 in
3M (TC) 3M 1350F-1B 1.875" X 72YD	Date of Manufacture	60 Months	0.0025 in	Polyester Film	Polyester Film	0.0015 in	Black	72 yd	216 ft	1.88 in	266 °F	Film	Acrylic	0.001 in
