Description
General part information

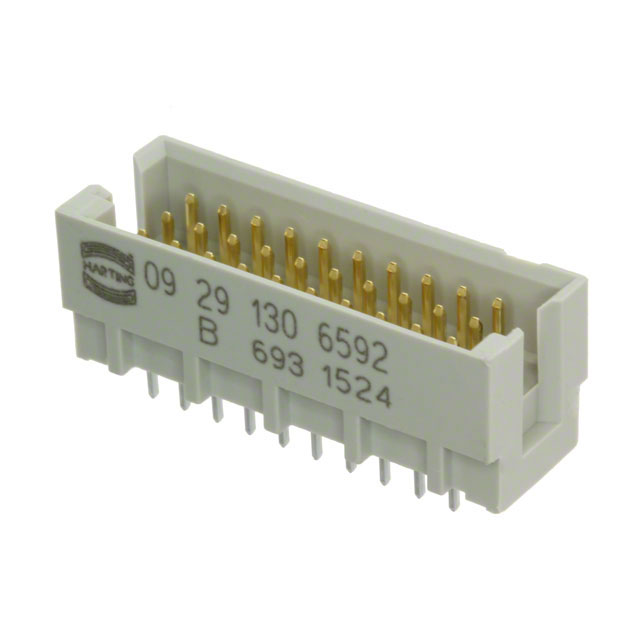

09291306592
30 Position Din Connector Header, Male Pins Gold-Palladium Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 09291306592 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold-Palladium |
| Current Rating | 2 A |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Style | 3R |
| Termination | Solder |
