CGM25N24X3

Active

Switchcraft Inc.

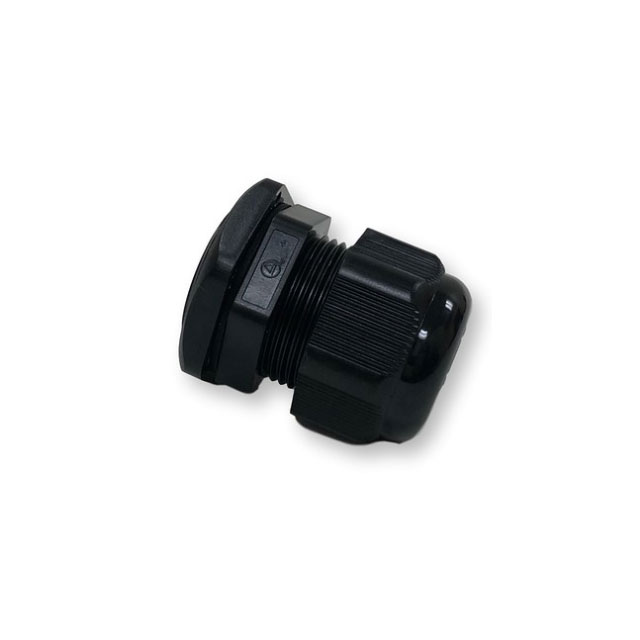

CABLE GLAND 3-6MM M25 THERMOPL

Search across all available documentation for this part.

Active

Switchcraft Inc.

CABLE GLAND 3-6MM M25 THERMOPL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CGM25N24X3	CGM25N Series

Color	Black	Black
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Thermoplastic	Thermoplastic
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.236 in	0.236 - 0.63 "
Outside Cable Diameter (Max) [Max] [diameter]	6 mm	6 - 16 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm	3 - 10 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in	0.118 - 0.394 in
Thread Length	7.87 mm	7.87 - 14.99 mm
Thread Length	0.31 in	0.31 - 0.59 in
Thread Size	M25x1.5	M25x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 10-16MM M25 THERMOPL

Part	Ingress Protection	Color	Thread Length	Thread Length	Material	Type	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. CGM25N63	IP68 - Dust Tight, Waterproof	Black	14.99 mm	0.59 in	Thermoplastic	Cable Gland	M25x1.5	0.394 in	10 mm	0.63 "	16 mm	O-Ring, Seal	100 °C	-40 °C
Switchcraft Inc. CGM25N24X2	IP68 - Dust Tight, Waterproof	Black	7.87 mm	0.31 in	Thermoplastic	Cable Gland	M25x1.5	0.118 in	3 mm	0.236 in	6 mm	O-Ring, Seal	100 °C	-40 °C
Switchcraft Inc. CGM25N24X3	IP68 - Dust Tight, Waterproof	Black	7.87 mm	0.31 in	Thermoplastic	Cable Gland	M25x1.5	0.118 in	3 mm	0.236 in	6 mm	O-Ring, Seal	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.22

General part information

Cable Gland Thermoplastic M25x1.5 Black
