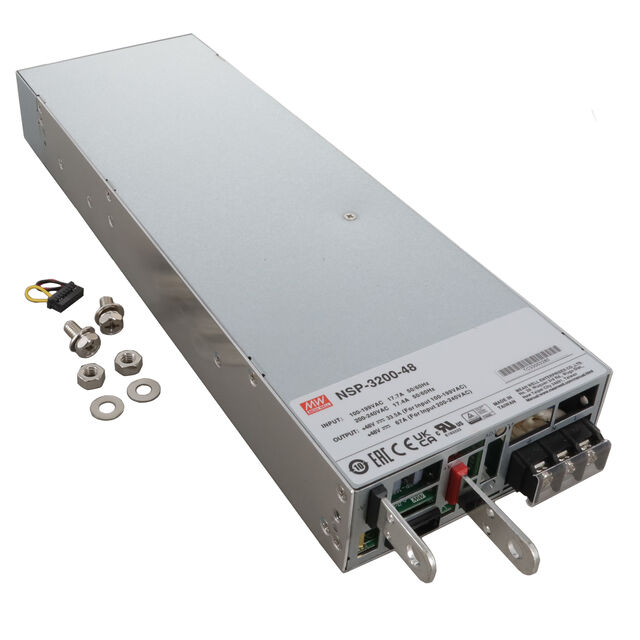

NSP-3200-48
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 48V 3.216KW
NSP-3200-48
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 48V 3.216KW
Description
General part information
NSP-3200-48
Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 127 ~ 400 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | NSP-3200-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, EAC, CB, UKCA, TUV, CE |
| Current - Output 1 | 67 A |
| Efficiency | 93.5 % |
| Features | PFC, Adjustable Output, Universal Input, DC Input Capable, Remote On/Off |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 3.216 kW |
| Size / Dimension Height | 1.61 in |
| Size / Dimension Length | 12.83 in |
| Size / Dimension Width | 4.21 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 400 V |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48 V |
