ISL9120IRTNZ

Active

Renesas Electronics Corporation

COMPACT HIGH EFFICIENCY LOW POWER BUCK-BOOST REGULATOR

Find alt

Alpha

ISL9120IRTNZ

Active

Renesas Electronics Corporation

COMPACT HIGH EFFICIENCY LOW POWER BUCK-BOOST REGULATOR

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

ISL9120 Series

The ISL9120 and ISL9120IR are highly integrated buck-boost switching regulators that accept input voltages either above or below the regulated output voltage. The regulator automatically transitions between buck and boost modes without significant output disturbance. They also have automatic bypass functionality. When the input voltage is generally within 1% to 2% of the output voltage, there will be a direct bypass connection between the VINand VOUTpins.

In addition to the automatic bypass functionality, the ISL9120 and ISL9120IR also have forced bypass functionality with the use of the BYP pin. The device is capable of delivering up to 800mA of output current (VIN= 2.5V, VOUT= 3.3V) and provides excellent efficiency due to its adaptive current limit Pulse Frequency Modulation (PFM) control architecture.

The ISL9120 and ISL9120IR are designed for stand-alone applications and support a 3.3V fixed output voltage or variable output voltages with an external resistor divider. The forced bypass power saving mode can be chosen if voltage regulation is not required. The device consumes less than 3.5µA of current over the operating temperature range in forced bypass mode.

Technical Specifications

Parameters and characteristics for this part

Specification	ISL9120IRTNZ

Current - Output	800 mA
Function	Step-Up, Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package / Case	12-WFQFN Exposed Pad
Package Length	3 mm
Package Name	12-TQFN
Package Width	3 mm
Synchronous Rectifier	No
Topology	Buck-Boost
Voltage - Input (Max)	5.5 V
Voltage - Input (Min)	1.8 V
Voltage - Output (Min/Fixed)	3.3 V

ISL9120 Series

Compact High Efficiency Low Power Buck-Boost Regulator

Part	Mounting Type	Voltage - Input (Min)	Synchronous Rectifier	Package Name	Package Width	Package Length	Output Type	Current - Output	Voltage - Output (Min/Fixed)	Topology	Output Configuration	Package / Case	Voltage - Input (Max)	Voltage - Output (Max)	Number of Outputs	Function	Operating Temperature (Max)	Operating Temperature (Min)	Board Type	Supplied Contents	Total Output Count	Non-Isolated Output Count	Utilized IC / Part	Voltage - Output (Min)	Regulator Topology	Main Purpose	Contents	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Voltage - Output
Renesas Electronics Corporation ISL9120IIAZ-T7A	Surface Mount	1.8 V	Yes	9-WLCSP	1.41 mm	1.41 mm	Adjustable	800 mA	1 V	Buck-Boost	Positive	9-UFBGA WLCSP	5.5 V	5.2 V	1	Step-Down Step-Up
Renesas Electronics Corporation ISL9120IIAZ-TR5696
Renesas Electronics Corporation ISL9120IRTAZ-T7A	Surface Mount	1.8 V	No	12-TQFN	3 mm	3 mm	Adjustable	800 mA	1 V	Buck-Boost	Positive	12-WFQFN Exposed Pad	5.5 V	5.2 V	1	Step-Down Step-Up	85 °C	-40 °C
Renesas Electronics Corporation ISL9120IIAZ-T	Surface Mount	1.8 V	Yes	9-WLCSP	1.41 mm	1.41 mm	Adjustable	800 mA	1 V	Buck-Boost	Positive	9-UFBGA WLCSP	5.5 V	5.2 V	1	Step-Down Step-Up
Renesas Electronics Corporation ISL9120IRTAZ-T	Surface Mount	1.8 V	No	12-TQFN	3 mm	3 mm	Adjustable	800 mA	1 V	Buck-Boost	Positive	12-WFQFN Exposed Pad	5.5 V	5.2 V	1	Step-Down Step-Up	85 °C	-40 °C
Renesas Electronics Corporation ISL9120IRTNZ-T	Surface Mount	1.8 V	No	12-TQFN	3 mm	3 mm	Fixed	800 mA	3.3 V	Buck-Boost	Positive	12-WFQFN Exposed Pad	5.5 V		1	Step-Down Step-Up	85 °C	-40 °C
Renesas Electronics Corporation ISL9120IINZ-T7A	Surface Mount	1.8 V	Yes	9-WLCSP	1.41 mm	1.41 mm	Fixed	800 mA	3.3 V	Buck-Boost	Positive	9-UFBGA WLCSP	5.5 V		1	Step-Down Step-Up
Renesas Electronics Corporation ISL9120IIA-EVZ							Non-Isolated	800 mA						5 V					Fully Populated	Board(s)	1	1 count	ISL9120	2 V	Buck-Boost	DC/DC Step Up or Down	Board	5.5 V	1.8 V

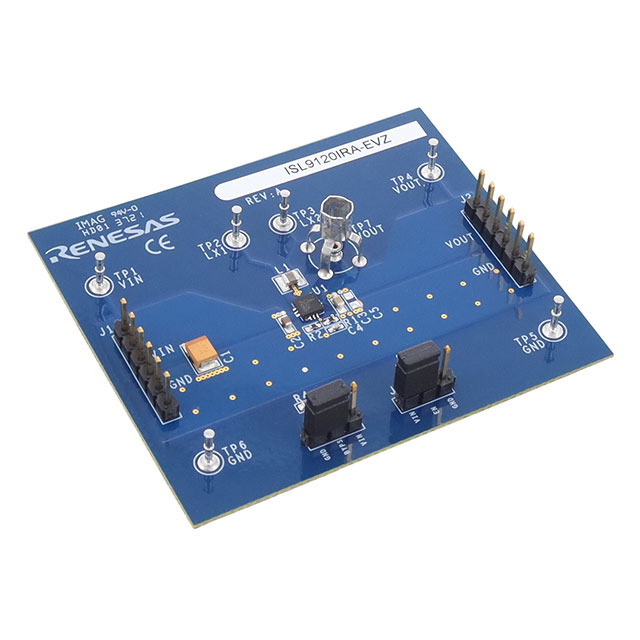

Renesas Electronics Corporation ISL9120IRA-EVZ							Non-Isolated	800 mA											Fully Populated	Board(s)	1	1 count	ISL9120IR		Buck-Boost	DC/DC Step Up or Down	Board	5.5 V	1.8 V	3.3 V
Renesas Electronics Corporation ISL9120IIN-EVZ							Non-Isolated	800 mA											Fully Populated	Board(s)	1	1 count	ISL9120		Buck-Boost	DC/DC Step Up or Down	Board	5.5 V	1.8 V	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Technical Data Sheet EN

Product Change Notice EN

ISL9120IR Datasheet
