Description
General part information

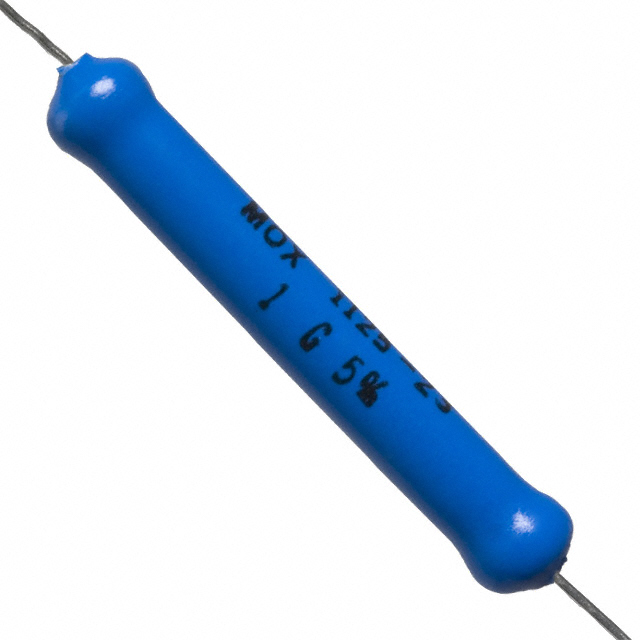

MOX1125231007JE
1 GOhms ±5% 1.5W Through Hole Resistor Axial High Voltage, Moisture Resistant Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MOX1125231007JE |
|---|---|
| Composition | Thick Film |
| Features | High Voltage, Moisture Resistant |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 220 °C, 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1.5 W |
| Resistance | 1 GOhm |
| Size / Dimension Diameter | 0.165 in |
| Size / Dimension Length | 1.27 in |
| Temperature Coefficient | 200 ppm/°C, 50 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
