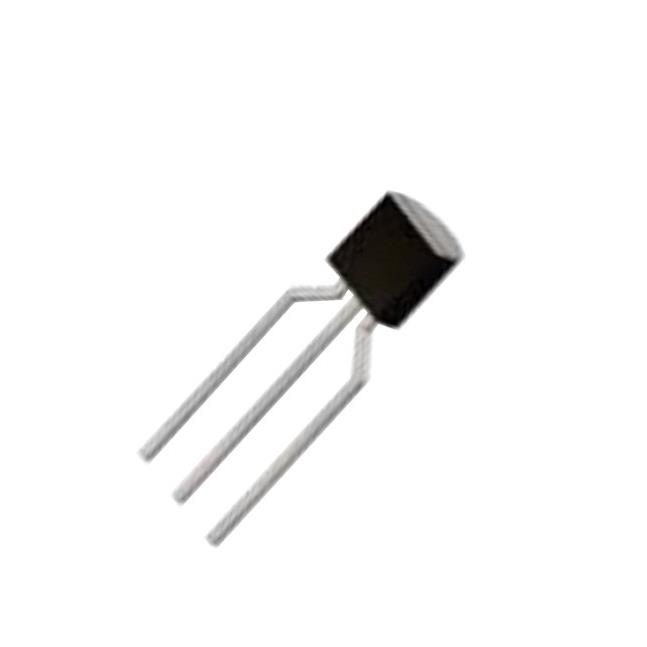

LM78L05ATA
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA TO-92
Technical Specifications
Parameters and characteristics for this part
| Specification | LM78L05ATA |
|---|---|
| Current - Output | 100 mA |
| Current - Quiescent (Iq) | 6 mA |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-92-3 (TO-226AA) Formed Leads, TO-226-3 |
| Package Name | TO-92, TO-92-3 |
| Protection Features | Over Current, Short Circuit, Over Temperature |
| PSRR | 49 dB |
| Voltage - Input (Max) | 20 V |
| Voltage - Output (Min/Fixed) | 5 V |
| Voltage Dropout (Max) | 1.7 V |
