095-850-303M300
ActiveAmphenol RF

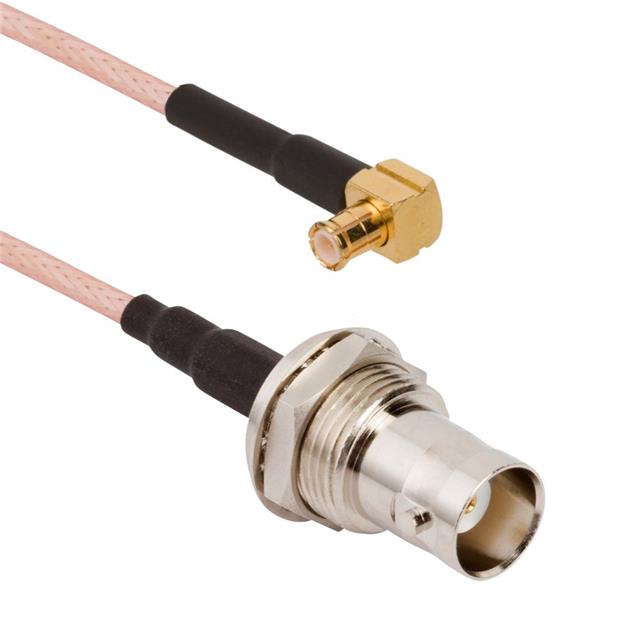

CBL ASSY BNC-MCX JACK-PLUG 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
095-850-303M300
ActiveAmphenol RF
CBL ASSY BNC-MCX JACK-PLUG 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-850-303M300 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | MCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Frequency - Max [Max] | 6000 MHz |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | BNC to MCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 38.06 | |
Description
General part information
095-850-303M300
Cable Assembly Coaxial BNC to MCX RG-316 118.1" (3.0m) 9.8'
Documents
Technical documentation and resources
No documents available
