DA101C
ActiveAUDIO TRANSFORMER, DIGITAL AUDIO DATA TRANSMISSION, 0.6, 60 HZ
Deep-Dive with AI
Search across all available documentation for this part.
DA101C
ActiveAUDIO TRANSFORMER, DIGITAL AUDIO DATA TRANSMISSION, 0.6, 60 HZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DA101C | DA101 Series |
|---|---|---|
| - | - | |
| ET (Volt-Time) | 15 VµS | 15 VµS |
| Height - Seated (Max) | 6.35 mm | 6.35 mm |
| Height - Seated (Max) [Max] | 0.25 in | 0.25 in |
| Inductance | 2.06 mH | 2.06 mH |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Turns Ratio - Primary:Secondary | 1:1 | 1:1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DA101 Series
AUDIO TRANSFORMER, DIGITAL AUDIO DATA TRANSMISSION, 0.6, 60 HZ
| Part | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) | Height - Seated (Max) [Max] | ET (Volt-Time) | Mounting Type | Turns Ratio - Primary:Secondary |
|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DA101C | ||||||||
Murata Power Solutions Inc. DA101C | 2.06 mH | 70 °C | 0 °C | 6.35 mm | 0.25 in | 15 VµS | Through Hole | 1:1 |
Murata Power Solutions Inc. DA101JC | 2.06 mH | 85 °C | -40 °C | 6.35 mm | 0.25 in | 15 VµS | Surface Mount | 1:1 |
Description
General part information
DA101 Series

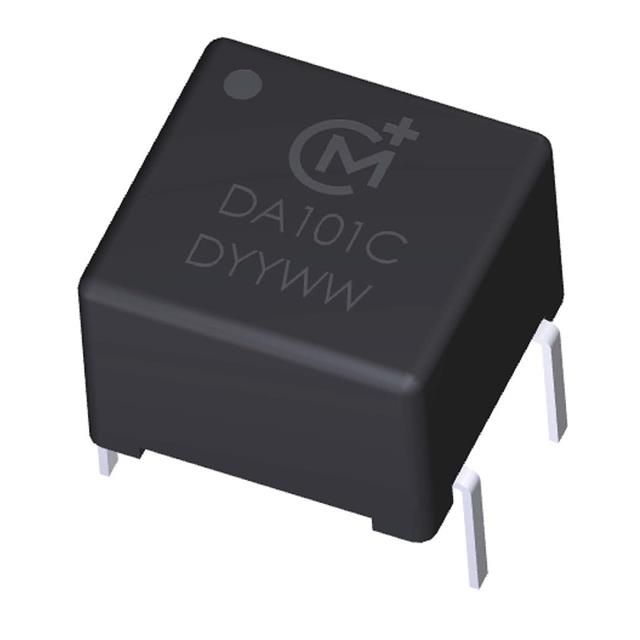

The DA101C from Murata is a digital audio transformer in DIL-6 package. It is designed to improve the balance of transmitter and receiver circuitry in Hi-Fi equipment, video games and other applications requiring high performance digital audio transmission. Compliant with AES/EBU recommendations for the digital audio interface, offering optimised shunt capacitance between primary and secondary windings. This transformer is capable to operating over the audio data rate frequency range providing isolation from 50Hz to 60Hz noise.
