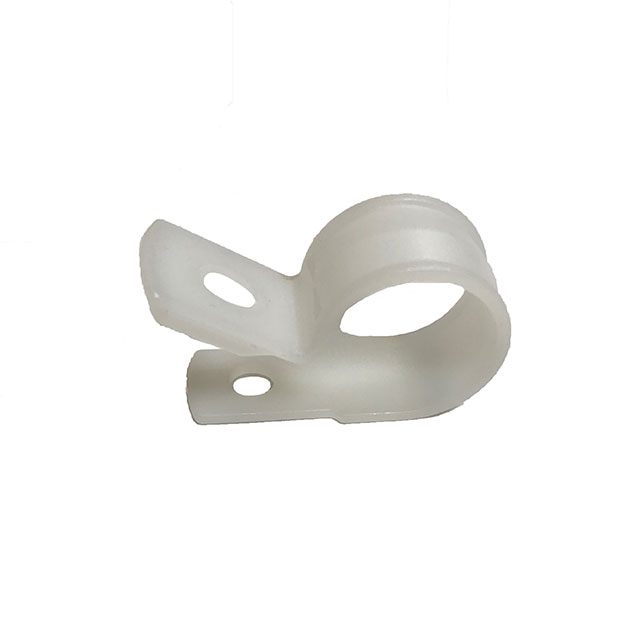

AL-SAC-250-9-C

Active

Advanced Cable Ties, Inc.

CBL CLAMP P-TYPE NAT FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAL-SAC-zzz-z-C Datasheet

AL-SAC-250-9-C

Active

Advanced Cable Ties, Inc.

CBL CLAMP P-TYPE NAT FASTENER

Deep-Dive with AI

DocumentsAL-SAC-zzz-z-C Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.08
		25	$ 0.07
		50	$ 0.06
		100	$ 0.06
		300	$ 0.05
		500	$ 0.05
		1000	$ 0.04
		2500	$ 0.04

Description

General part information

AL-SAC Series

Cable Clamp, P-Type Natural Fastener 0.205" (5.21mm)

Documents

Technical documentation and resources

AL-SAC-zzz-z-C Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AL-SAC-250-9-C	AL-SAC Series

Bundle Center to Mounting Center	-	0.362 - 0.98 "
Bundle Center to Mounting Center	-	9.2 - 24.9 mm
Bundle Center to Mounting Center [x]	10.39 mm	7.98 - 19.48 mm
Bundle Center to Mounting Center [x]	0.409 in	0.314 - 0.767 in
Color	Natural	Black, Natural
Length	-	20.32 - 55.07 mm
Length	-	0.8 - 2.168 in
Length [x]	22.86 mm	22.86 - 42.77 mm
Length [x]	0.9 in	0.9 - 1.684 "
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Material Thickness	0.049 in	0.046 - 0.065 in
Material Thickness	1.25 mm	1.17 - 1.65 mm
Mounting Type	Fastener	Fastener
Opening Size	-	0.256 - 1.126 in
Opening Size	-	6.5 - 36.58 mm
Opening Size	-	0.082 - 1.44 in
Opening Size	-	2.08 mm
Opening Size [custom]	0.205 in	0.151 - 0.693 in
Opening Size [custom]	5.21 mm	3.84 - 17.6 mm
Panel Hole Size	4.01 mm	4.01 - 4.98 mm
Panel Hole Size	0.158 in	0.158 - 0.196 in
Screw Size	#6	#6
Screw Size	M4	M5, M4
Screw Size	-	#10
Type	Clamp, P-Type	Clamp, P-Type
Width	-	11.91 - 12.34 mm
Width	-	0.469 - 0.486 in
Width [y]	0.396 "	0.377 - 0.396 in
Width [y]	10.06 mm	9.58 - 10.06 mm

AL-SAC Series

CBL CLAMP P-TYPE BLACK FASTENER

Part	Screw Size	Screw Size	Opening Size	Opening Size	Panel Hole Size	Panel Hole Size	Material	Width [x]	Width [x]	Color	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Mounting Type	Type	Material Flammability Rating	Material Thickness	Material Thickness	Length	Length [x]	Opening Size [z]	Length	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Screw Size	Opening Size [z]	Width [y]	Width [y]	Opening Size [custom]	Opening Size [custom]	Length [x]
Advanced Cable Ties, Inc. AL-SAC-375-0-C	M5	#10	0.352 in	8.94 mm	4.98 mm	0.196 in	Polyamide (PA66), Nylon 6/6	12.34 mm	0.486 in	Black	0.492 "	12.5 mm	Fastener	Clamp, P-Type	UL94 V-2	0.057 in	1.45 mm	28.37 mm	1.117 "
Advanced Cable Ties, Inc. AL-SAC-1500-0-C	M5	#10		36.58 mm	4.98 mm	0.196 in	Polyamide (PA66), Nylon 6/6	12.34 mm	0.486 in	Black	0.98 in	24.9 mm	Fastener	Clamp, P-Type	UL94 V-2	0.06 in	1.52 mm	55.07 mm		1.44 in	2.168 in
Advanced Cable Ties, Inc. AL-SAC-375-9-C	M5	#10	0.352 in	8.94 mm	4.98 mm	0.196 in	Polyamide (PA66), Nylon 6/6	12.34 mm	0.486 in	Natural	0.492 "	12.5 mm	Fastener	Clamp, P-Type	UL94 V-2	0.057 in	1.45 mm	28.37 mm	1.117 "
Advanced Cable Ties, Inc. AL-SAC-125-0-C	M4				4.01 mm	0.158 in	Polyamide (PA66), Nylon 6/6			Black			Fastener	Clamp, P-Type	UL94 V-2	0.046 in	1.17 mm	20.32 mm		0.082 in	0.8 in	0.314 in	7.98 mm	#6	2.08 mm	0.377 in	9.58 mm
Advanced Cable Ties, Inc. AL-SAC-625-0-C	M5	#10		14.33 mm	4.98 mm	0.196 in	Polyamide (PA66), Nylon 6/6	12.34 mm	0.486 in	Black			Fastener	Clamp, P-Type	UL94 V-2	0.06 in	1.52 mm	33.91 mm		0.564 in	1.335 in	0.622 in	15.8 mm
Advanced Cable Ties, Inc. AL-SAC-750-0-C	M5	#10			4.98 mm	0.196 in	Polyamide (PA66), Nylon 6/6	11.91 mm	0.469 in	Black			Fastener	Clamp, P-Type	UL94 V-2	0.06 in	1.52 mm	37.08 mm			1.46 "	0.708 in	17.98 mm					0.693 in	17.6 mm
Advanced Cable Ties, Inc. AL-SAC-875-9-C	M5	#10		20.65 mm	4.98 mm	0.196 in	Polyamide (PA66), Nylon 6/6	11.91 mm	0.469 in	Natural			Fastener	Clamp, P-Type	UL94 V-2	0.057 in	1.45 mm	40.06 mm		0.813 in	1.577 in	0.767 in	19.48 mm
Advanced Cable Ties, Inc. AL-SAC-1000-0-C	M5	#10			4.98 mm	0.196 in	Polyamide (PA66), Nylon 6/6	11.91 mm	0.469 in	Black	0.82 in	20.83 mm	Fastener	Clamp, P-Type	UL94 V-2	0.057 in	1.45 mm		1.684 "											42.77 mm
Advanced Cable Ties, Inc. AL-SAC-187-0-C	M4				4.01 mm	0.158 in	Polyamide (PA66), Nylon 6/6			Black	0.362 in	9.2 mm	Fastener	Clamp, P-Type	UL94 V-2	0.049 in	1.25 mm	22.02 mm			0.867 in			#6		0.377 in	9.58 mm	0.151 in	3.84 mm
Advanced Cable Ties, Inc. AL-SAC-1250-9-C	M5	#10	1.126 in	28.6 mm	4.98 mm	0.196 in	Polyamide (PA66), Nylon 6/6	11.91 mm	0.469 in	Natural	0.94 in	23.88 mm	Fastener	Clamp, P-Type	UL94 V-2	0.065 in	1.65 mm	50.8 mm			2 in
