PE44351
ActivePasternack
10-32 MALE CONNECTOR CRIMP/SOLDE
PE44351
ActivePasternack
10-32 MALE CONNECTOR CRIMP/SOLDE
Description
General part information
PE44351

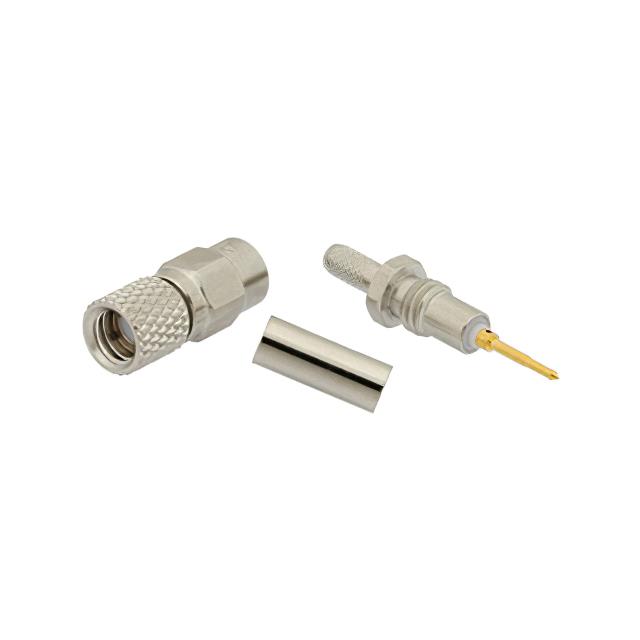

10/32 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44351 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 316, LMR-100, 188, RG-174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | 10/32 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
