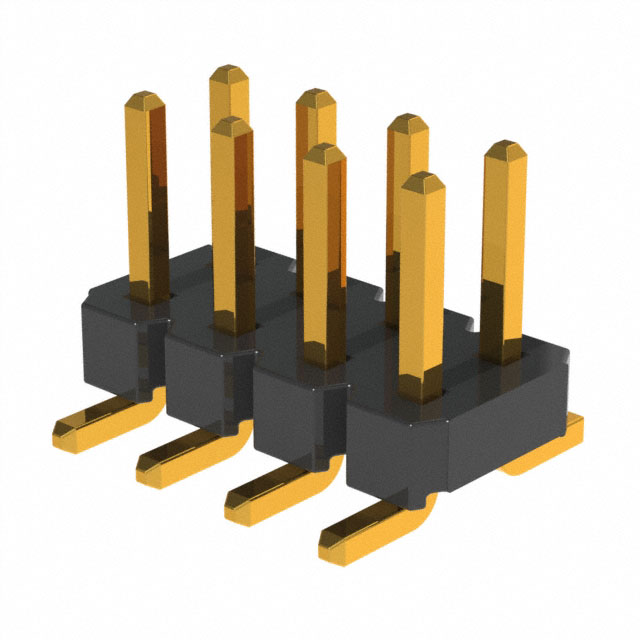

NRPN042MAMS-RC

Active

Sullins Connector Solutions

CONN HEADER SMD 8POS 2MM

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HEADER SMD 8POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	NRPN042MAMS-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	150 VDC

Part	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Termination	Contact Length - Post [x]	Contact Length - Post	Voltage Rating	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Insulation Color	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Style	Insulation Material	Contact Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Shrouding	Insulation Height	Insulation Height
Sullins Connector Solutions NRPN042PARN-RC	Square	0.079 in	2 mm	2	Solder	0.11 in	2.79 mm	150 VDC	Gold	All	Flash	8	0.157 in	4 mm	Brass	-40 °C	105 ░C	Push-Pull	Through Hole Right Angle	Black	2 A	0.141 in	3.6 mm	Board to Board Cable	Nylon 6T Polyamide (PA6T)	Male Pin	Header	Flash	Gold	0.079 in	2 mm	UL94 V-0	Unshrouded
Sullins Connector Solutions NRPN042MAMS-RC	Square	0.079 in	2 mm	2	Solder			150 VDC	Gold	All	Flash	8			Brass	-40 °C	105 ░C	Push-Pull	Surface Mount	Black	2 A	0.141 in	3.6 mm	Board to Board Cable	Nylon 6T Polyamide (PA6T)	Male Pin	Header	Flash	Gold	0.079 in	2 mm	UL94 V-0	Unshrouded	1.5 mm	0.059 "
