Description
General part information

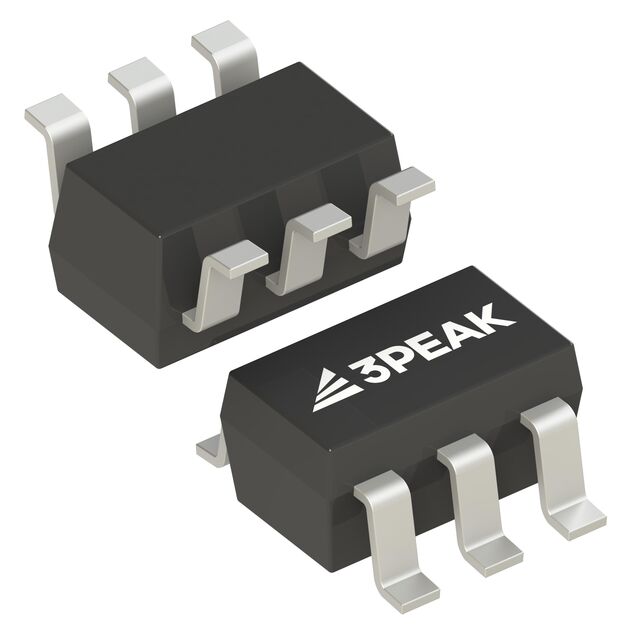

TPW3125L1-SC6R-S
1 Circuit IC Switch 2:1 4.8Ohm SC-70-6
Technical Specifications
Parameters and characteristics for this part
| Specification | TPW3125L1-SC6R-S |
|---|---|
| -3db Bandwidth | 250 MHz |
| Channel Capacitance (CD(off)) | 12 pF |
| Channel Capacitance (CS(off)) | 12 pF |
| Channel-to-Channel Matching (ΔRon) (Max) | 500 mOhm |
| Charge Injection | 20 pC |
| Crosstalk | -65 dB |
| Current - Leakage (Max) | 10 nA |
| Demultiplexer Outputs | 1 |
| Mounting Type | Surface Mount |
| Multiplexer Inputs | 2 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 4.8 Ohm |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Package Name | SC-70-6 |
| Switch Circuit Type | SPDT |
| Switch Contact | Closed, Open |
| Switch Time Toff (Max) | 85 ns |
| Switch Time Ton (Max) | 85 ns |
| Voltage - Supply, Single (V+) (Maximum) | 5.5 V |
| Voltage - Supply, Single (V+) (Minimum) | 1.65 V |
