1280-12-5

Active

3M (TC)

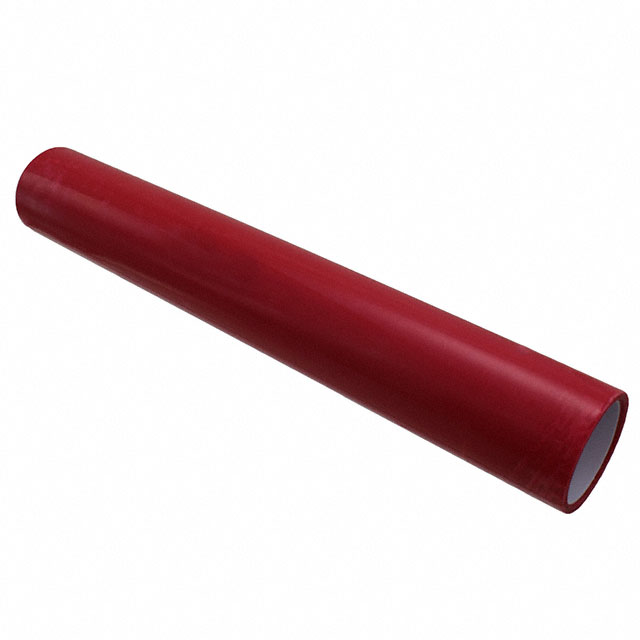

TAPE ELECTROPLATING RED 12"X5YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ELECTROPLATING RED 12"X5YDS

Technical Specifications

Parameters and characteristics for this part

Specification	1280-12-5

Adhesive	Rubber
Backing, Carrier	Polyester Film
Color	Red
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Electroplating
Temperature Range [Max]	77 °C, 170 °F
Temperature Range [Min]	40 °F, 4 °C
Thickness - Adhesive [custom]	2.7 mils
Thickness - Adhesive [custom]	0.0027 "
Thickness - Adhesive [custom]	0.069 mm
Thickness - Backing, Carrier	0.0009 in
Thickness - Backing, Carrier	0.9 mils
Thickness - Backing, Carrier	0.023 mm
Usage	Sealing, Protection, Masking
Width [x]	304.8 mm
Width [x]	12 in

Part	Backing, Carrier	Length	Length	Length	Width [x]	Width [x]	Adhesive	Temperature Range [Min]	Temperature Range [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Tape Type	Color	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life	Usage	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Temperature Range	Temperature Range	Thickness	Thickness	Thickness
3M (TC) 1280-12-5	Polyester Film	4.6 m	15 ft	5 yd	304.8 mm	12 in	Rubber	4 °C 40 °F	77 °C 170 °F	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Electroplating	Red	2.7 mils	0.0027 "	0.069 mm	0.0009 in	0.9 mils	0.023 mm	18 Months	Masking Protection Sealing
3M (TC) 12-5-484	Vinyl	4.6 m	15 ft	5 yd	304.8 mm	12 in	Rubber			16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Electroplating	Tan				0.0057 in	5.7 mils	0.145 mm	18 Months	Masking Protection Sealing	1.5 mils	0.0015 in	0.038 mm	170 °F	77 °C	0.183 mm	0.0072 in	7.2 mils

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Electroplating Tape Rubber Adhesive Red 12.00" (304.80mm) X 15' (4.6m) 5 yds
