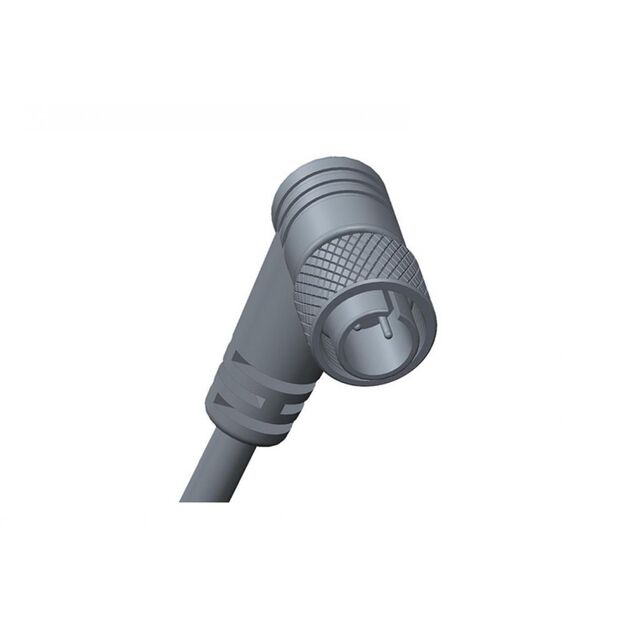

105-04AFMM-SR7A01

Active

Amphenol LTW

CBL 4POS PLUG RA TO WIRE 3.28'

Search across all available documentation for this part.

Active

Amphenol LTW

CBL 4POS PLUG RA TO WIRE 3.28'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	105-04AFMM-SR7A01	105-04AFMM Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	4	4
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Shell Size - Insert	M10.5	M10.5
1st Connector Type	Plug, Right Angle	Plug, Right Angle, Plug
2nd Connector Type	Wire Leads	Wire Leads
Assembly Configuration	Standard	Standard
Cable Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Cable Type	Round	Round
Color	Black	Black
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Length [x]	1 m	1 - 500 m
Length [x]	3.28 ft	1.64 - 6.56 ft
Shielding	Unshielded	Unshielded
Usage	Industrial Environments	Industrial Environments

CBL 4POS PLUG RA TO WIRE 3.28'

Part	2nd Connector Type	1st Connector Number of Positions	Color	Shielding	1st Connector Mounting Type	Length [x]	Length [x]	Assembly Configuration	1st Connector Orientation [custom]	Ingress Protection	1st Connector Type	1st Connector Gender	Cable Material	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	Usage	Cable Type
Amphenol LTW 105-04AFMM-SR7A01	Wire Leads	4	Black	Unshielded	Free Hanging (In-Line)	1 m	3.28 ft	Standard	Keyed	IP67 - Dust Tight, Waterproof	Plug, Right Angle	Male Pins	Polyvinyl Chloride (PVC)	M10.5	All	Industrial Environments	Round
Amphenol LTW 105-04AFMM-SR7A02	Wire Leads	4	Black	Unshielded	Free Hanging (In-Line)	2 m	6.56 ft	Standard	Keyed	IP67 - Dust Tight, Waterproof	Plug, Right Angle	Male Pins	Polyvinyl Chloride (PVC)	M10.5	All	Industrial Environments	Round
Amphenol LTW 105-04AFMM-SR7A05	Wire Leads	4	Black	Unshielded	Free Hanging (In-Line)	500 mm	1.64 ft	Standard	Keyed	IP67 - Dust Tight, Waterproof	Plug, Right Angle	Male Pins	Polyvinyl Chloride (PVC)	M10.5	All	Industrial Environments	Round
Amphenol LTW 105-04AFMM-SL7A10	Wire Leads	4	Black	Unshielded	Free Hanging (In-Line)			Standard	Keyed	IP67 - Dust Tight, Waterproof	Plug	Male Pins	Polyvinyl Chloride (PVC)	M10.5	All	Industrial Environments	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
