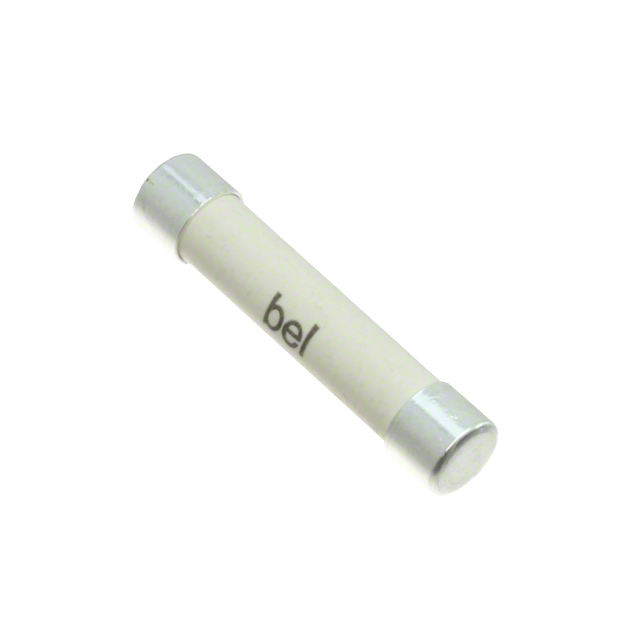

0ADHC0440-BE
ActiveBel Fuse Inc.
FUSE CERM 0.44A 1000VAC/VDC
0ADHC0440-BE
ActiveBel Fuse Inc.
FUSE CERM 0.44A 1000VAC/VDC
Description
General part information
0ADHC0440-BE
440mA 1 kVAC 1 kVDC Fuse Cartridge, Ceramic Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | 0ADHC0440-BE |
|---|---|
| Applications | Multi-Meters |
| Breaking Capacity | 30 kA |
| Current Rating | 0.44 A |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Package Features | Midget |
| Package Length | 10 mm |
| Package Name | 5AG Midget, 5AG |
| Package Width | 38 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.476 in |
| Voltage Rating - AC | 1 kVAC |
| Voltage Rating - DC | 1 kV |
