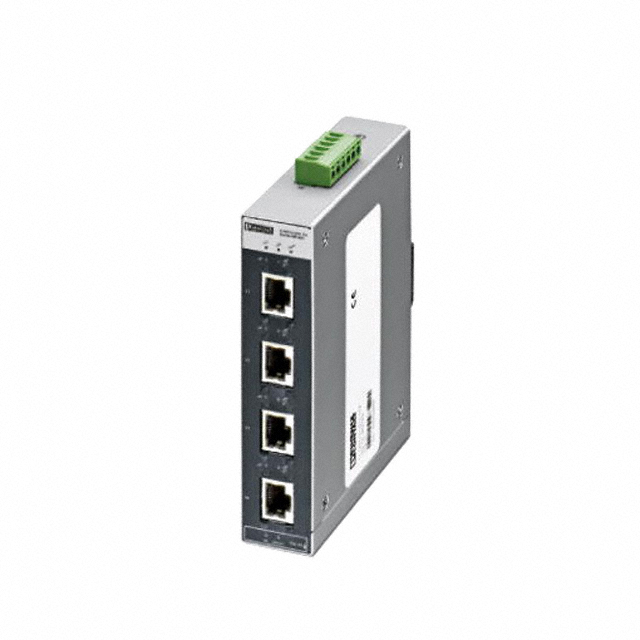

2891003
ObsoletePhoenix Contact
NETWORK SWITCH-UNMANAGED 5 PORT
2891003
ObsoletePhoenix Contact
NETWORK SWITCH-UNMANAGED 5 PORT
Description
General part information
2891003
Network Switch - Unmanaged 5 Ports IP20
Technical Specifications
Parameters and characteristics for this part
| Specification | 2891003 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45 |
| Copper Ports | 5 |
| Copper Type | 10/100 |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Number of Ports | 5 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Switch - Unmanaged |
| Voltage - Input (DC) Maximum | 32 VDC |
| Voltage - Input (DC) Minimum | 9 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
