SCRH127-390
ActiveSignal Transformer
FIXED IND 39UH 2.91A 72.9MOHM SM
SCRH127-390
ActiveSignal Transformer
FIXED IND 39UH 2.91A 72.9MOHM SM
Description
General part information

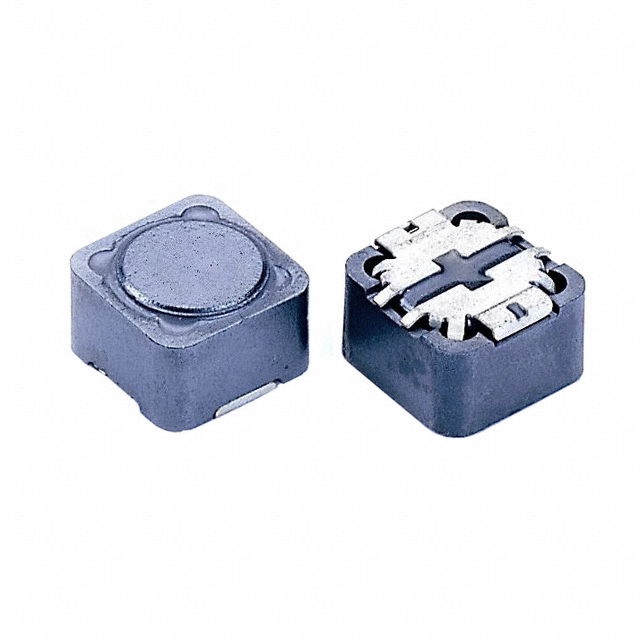

SCRH127-390
39 µH Shielded Inductor 2.91 A 72.9mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRH127-390 |
|---|---|
| Current - Saturation (Isat) | 2.75 A |
| Current Rating | 2.91 A |
| DC Resistance (DCR) (Max) | 72.9 mOhm |
| Height - Seated (Max) | 0.315 in |
| Inductance | 39 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
