1-1103417-7
ActiveTE Connectivity AMP Connectors

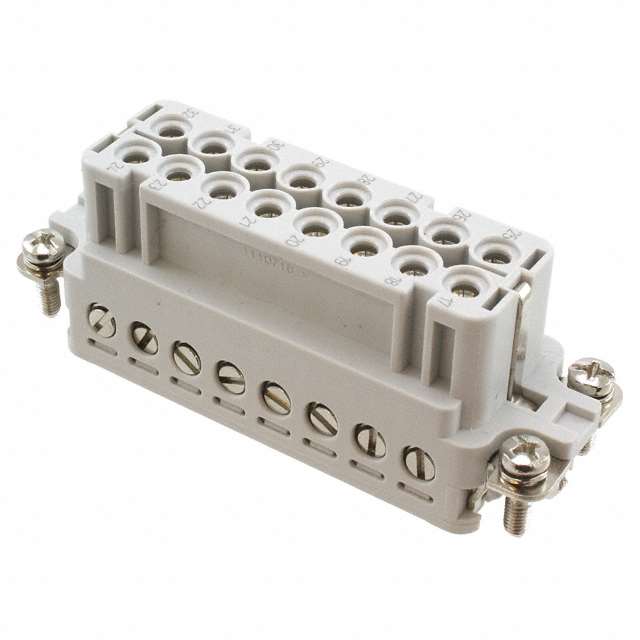

INSERT FEMALE 16POS+1GND SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1103417-7
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 16POS+1GND SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1103417-7 | 1103417 Series |
|---|---|---|
| Color | Beige | Beige |
| Connector Type | - | Insert without Contacts |
| Contact Finish | Silver | Silver |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Female |
| Housing Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 16+Ground | 16+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 5 | 5 |
| Termination Style | Screw | Crimp, Screw |
| Voltage Rating | 250 VDC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 80 | $ 114.71 | |
1103417 Series
INSERT FEMALE 16POS+1GND CRIMP
| Part | Number of Positions | Termination Style | Size | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Current Rating (Amps) | Gender | Voltage Rating | Housing Material | Contact Finish | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103417-3 | 16+Ground | Crimp | 5 | Insert without Contacts | 125 °C | -40 °C | Beige | 16 A | Female | 250 VDC | Polybutylene Terephthalate (PBT) | ||
TE Connectivity AMP Connectors 1-1103417-7 | 16+Ground | Screw | 5 | 125 °C | -40 °C | Beige | 16 A | Female | 250 VDC | Polybutylene Terephthalate (PBT) | Silver | UL94 V-0 | |
TE Connectivity AMP Connectors 1-1103417-1 | 16+Ground | Screw | 5 | 125 °C | -40 °C | Beige | 16 A | Female | 250 VDC | Polybutylene Terephthalate (PBT) | Silver | UL94 V-0 | |
TE Connectivity AMP Connectors 2-1103417-7 | 16+Ground | Crimp | 5 | Insert without Contacts | 125 °C | -40 °C | Beige | 16 A | Female | 250 VDC | Polybutylene Terephthalate (PBT) |
Description
General part information
1103417 Series
Female Insert Beige 16+Ground Position Screw
