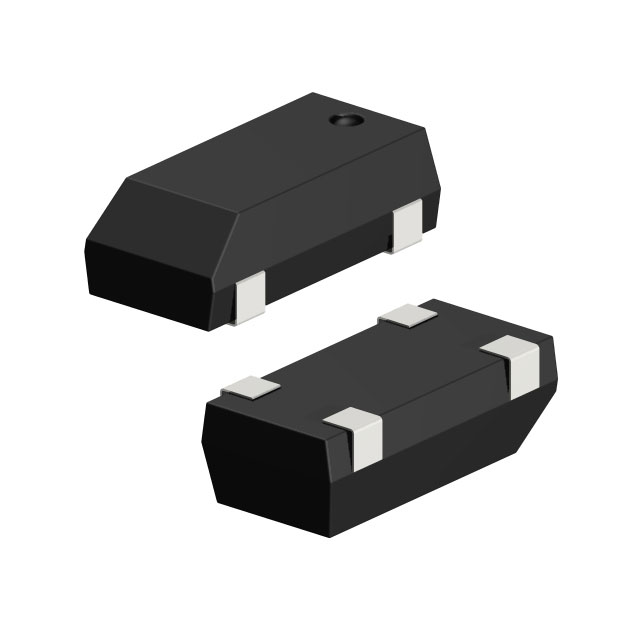

SWS8347D16-32.768KT
ActiveSuntsu Electronics, Inc
CRYSTAL 32.7680KHZ 7PF SMD
SWS8347D16-32.768KT
ActiveSuntsu Electronics, Inc
CRYSTAL 32.7680KHZ 7PF SMD
Description
General part information
SWS8347D16-32.768KT
32.768 kHz ±20ppm Crystal 7pF 50 kOhms 4-SOJ, 5.50mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | SWS8347D16-32.768KT |
|---|---|
| ESR (Equivalent Series Resistance) | 50 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.098 in |
| Load Capacitance | 7 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 5.50mm pitch, 4-SOJ |
| Package Length | 8 mm |
| Package Name | 4-SMD |
| Package Pitch | 5.5 mm |
| Package Width | 3.8 mm |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.15 in |
| Type | kHz Crystal (Tuning Fork) |
