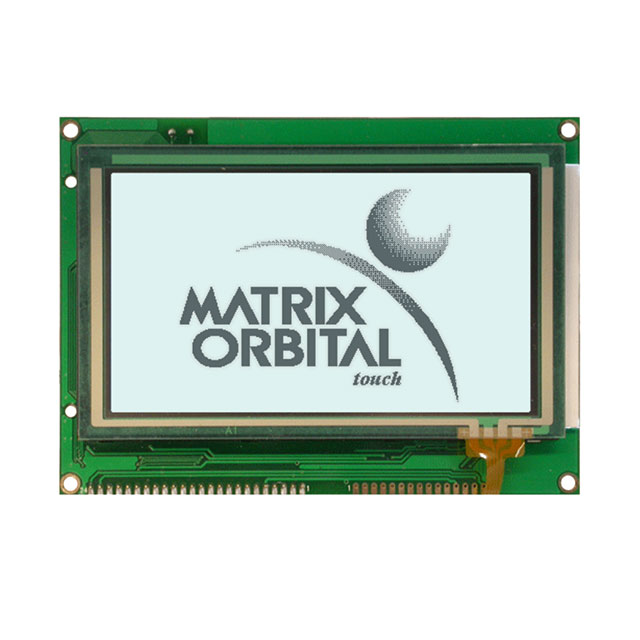

Specification	GLK240128-25-FGW

Background Color	White
Backlight Color	White
Backlight Type	LED
Display Mode	Transmissive
Display Type	Monochrome
Dot Pitch Height	0.45 mm
Dot Pitch Width	0.45 mm
Dot Pixels (Horizontal)	240 pixels
Dot Pixels (Vertical)	128 pixels
Dot Size Height	0.4 mm
Dot Size Width	0.4 mm
Graphics Color	Black
Interface	I2C, TTL, RS-232
Viewing Area Height	64 mm
Viewing Area Width	114 mm

GLK240128 Series

Part	Dot Size Height	Dot Size Width	Dot Pitch Height	Dot Pitch Width	Background Color	Display Type	Graphics Color	Viewing Area Height	Viewing Area Width	Interface	Dot Pixels (Horizontal)	Dot Pixels (Vertical)	Display Mode	Backlight Type	Backlight Color
Matrix Orbital GLK240128-25-VPT-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Green Yellow	LCD - Monochrome	Black	57.55 mm	107.95 mm	I2C RS-232 TTL	240 pixels	128 pixels
Matrix Orbital GLK240128-25-422-VPT	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Green Yellow	LCD - Monochrome	Black	57.55 mm	107.95 mm	RS-422	240 pixels	128 pixels
Matrix Orbital GLK240128-25-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Green	Monochrome	Black	64 mm	114 mm	I2C RS-232 TTL	240 pixels	128 pixels	Transmissive	LED	Green Yellow
Matrix Orbital GLK240128-25-VPT	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Green	Monochrome	Black	64 mm	114 mm	I2C RS-232 TTL	240 pixels	128 pixels	Transmissive	LED	Green Yellow
Matrix Orbital GLK240128-25-422-FGW-VPT	0.4 mm	0.4 mm	0.45 mm	0.45 mm	White	LCD - Monochrome	Gray	57.55 mm	107.95 mm	RS-422	240 pixels	128 pixels
Matrix Orbital GLK240128-25-WB-VPT	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Blue	Monochrome	White	64 mm	114 mm	I2C RS-232 TTL	240 pixels	128 pixels	Transmissive	LED	White
Matrix Orbital GLK240128-25-USB	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Green Yellow	LCD - Monochrome	Black	57.55 mm	107.95 mm	USB	240 pixels	128 pixels
Matrix Orbital GLK240128-25-422-WB-VPT-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Blue	LCD - Monochrome	White	57.55 mm	107.95 mm	RS-422	240 pixels	128 pixels
Matrix Orbital GLK240128-25-FGW-VPT-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm	White	LCD - Monochrome	Gray	57.55 mm	107.95 mm	I2C RS-232 TTL	240 pixels	128 pixels
Matrix Orbital GLK240128-25-USB-WB-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Blue	LCD - Monochrome	White	57.55 mm	107.95 mm	USB	240 pixels	128 pixels
