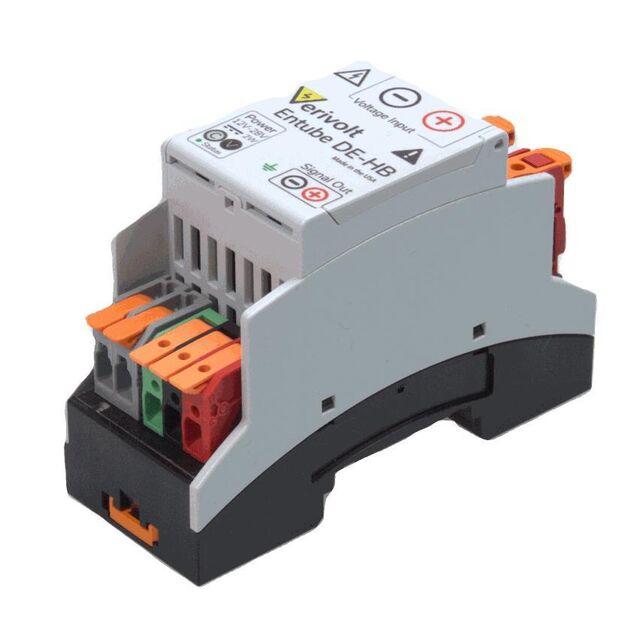

ENTUBE DE-HB (1000V 10V SESC)
ActiveVerivolt LLC
TRANSDUCER VOLTAGE 9-28VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ENTUBE DE-HB (1000V 10V SESC)
ActiveVerivolt LLC
TRANSDUCER VOLTAGE 9-28VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ENTUBE DE-HB (1000V 10V SESC) | ENTUBE DE Series |
|---|---|---|
| Accuracy | 0.2 % | 0.2 % |
| Input Range | - | 50 - 1500 V |
| Input Range [Max] | 1000 V | 100 - 1000 V |
| Input Range [Min] | -1000 V | -1000 - 0 V |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output | 10 V | 1 - 10 V |
| Output | - | 7 VAC |
| Output | - | 0 VAC |
| Response Time | 20 ns | 20 ns |
| Termination Style | Spring Terminal | Spring Terminal, BNC |
| Type | Voltage Transducer | Voltage Transducer |
| Voltage - Supply [Max] | 28 V | 28 V |
| Voltage - Supply [Min] | 9 V | 9 V |
ENTUBE DE Series
TRANSDUCER VOLTAGE 9-28VDC
| Part | Response Time | Type | Termination Style | Output | Mounting Type | Input Range [Max] | Input Range [Min] | Accuracy | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Input Range | Output [Max] | Output [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Verivolt LLC ENTUBE DE-HB (100V 10V DIFFSC) | 20 ns | Voltage Transducer | Spring Terminal | 10 V | DIN Rail | 100 V | -100 V | 0.2 % | 28 V | 9 V | 70 °C | -25 °C | |||
Verivolt LLC ENTUBE DE-HB (50V 10V SESC) | 20 ns | Voltage Transducer | Spring Terminal | 10 V | DIN Rail | 0.2 % | 28 V | 9 V | 70 °C | -25 °C | 50 V | ||||
Verivolt LLC ENTUBE DE-HB (1000V5V SEBNC) | 20 ns | Voltage Transducer | BNC, Spring Terminal | 5 V | DIN Rail | 1000 V | -1000 V | 0.2 % | 28 V | 9 V | 70 °C | -25 °C | |||
Verivolt LLC ENTUBE DE-HB (100V 5V DIFFSC) | 20 ns | Voltage Transducer | Spring Terminal | 5 V | DIN Rail | 100 V | -100 V | 0.2 % | 28 V | 9 V | 70 °C | -25 °C | |||
Verivolt LLC ENTUBE DE-HB (100V1V SEBNC) | 20 ns | Voltage Transducer | BNC, Spring Terminal | 1 V | DIN Rail | 100 V | -100 V | 0.2 % | 28 V | 9 V | 70 °C | -25 °C | |||
Verivolt LLC ENTUBE DE (500V 10V) | Voltage Transducer | Spring Terminal | 10 V | DIN Rail | 500 V | -500 V | 0.2 % | 70 °C | -25 °C | ||||||
Verivolt LLC ENTUBE DE (100V 5V) | Voltage Transducer | Spring Terminal | 5 V | DIN Rail | 100 V | -100 V | 0.2 % | 70 °C | -25 °C | ||||||
Verivolt LLC ENTUBE DE (300V 5V) | Voltage Transducer | Spring Terminal | 5 V | DIN Rail | 0.2 % | 70 °C | -25 °C | 300 V | |||||||
Verivolt LLC ENTUBE DE-HB (750V 10V DIFFSC) | 20 ns | Voltage Transducer | Spring Terminal | 10 V | DIN Rail | 0.2 % | 28 V | 9 V | 70 °C | -25 °C | 750 V | ||||
Verivolt LLC ENTUBE DE (300V 10V) | Voltage Transducer | Spring Terminal | 10 V | DIN Rail | 0.2 % | 70 °C | -25 °C | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 416.10 | |
Description
General part information
ENTUBE DE Series
Voltage Transducer ±1000V Input ±10V Output 9 ~ 28VDC DIN Rail
