Description
General part information

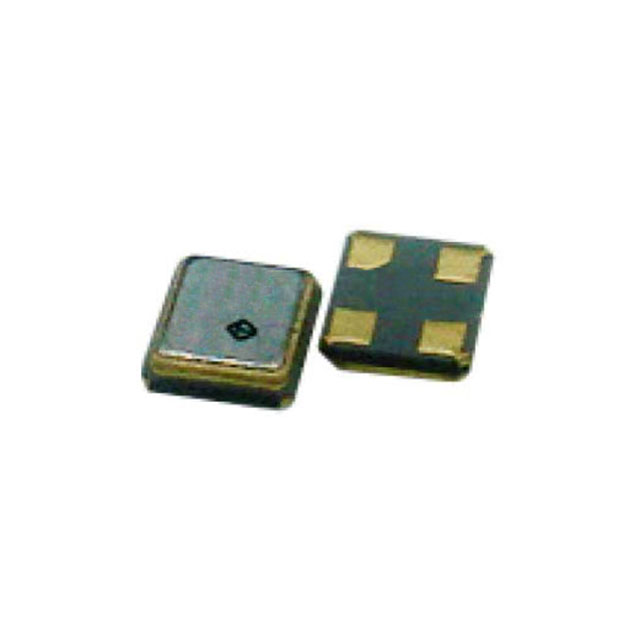

XZLEELNANF-38.400000
38.4 MHz ±30ppm Crystal 6pF 80 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | XZLEELNANF-38.400000 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 38.4 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.022 in |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.05 mm |
| Package Name | 4-SMD |
| Package Width | 1.65 mm |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.081 in |
| Size / Dimension Width | 0.065 in |
| Type | MHz Crystal |
