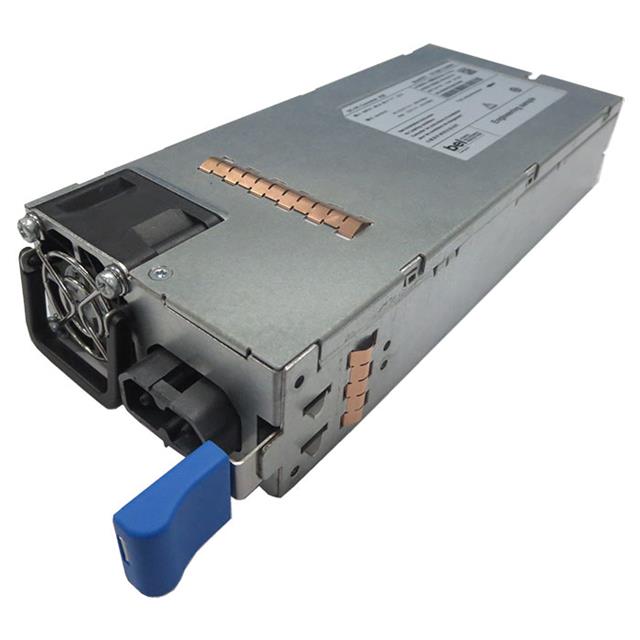

TET2200-12-086ND

Active

Bel Power Solutions

DC/DC CONVERTER 12V 2200W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC CONVERTER 12V 2200W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TET2200-12-086ND	TET2200 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output (Max) [Max]	183 A	183 A
Current - Output 1	-	183 A
Efficiency	94 %	94 - 96 %
Features	-	Adjustable Output, Standby Output, Remote Sense
Mounting Type	Rack Mount	Rack Mount
Number of Outputs	1	1
Power (Watts)	2200 W	2196 - 2200 W
Size / Dimension [x]	7.74 in	7.74 in
Size / Dimension [x]	196.5 mm	196.5 mm
Size / Dimension [y]	3.4 in	3.4 in
Size / Dimension [y]	86.3 mm	86.3 mm
Size / Dimension [z]	1.57 "	1.57 "
Size / Dimension [z]	40 mm	40 mm
Type	Front End	Front End
Voltage - Input	-	100 - 180 VAC
Voltage - Input	-	240 - 300 VAC
Voltage - Input (Max) [Max]	-72 V	-72 V
Voltage - Input (Min) [Min]	-40 V	-40 V
Voltage - Isolation	1.5 kV	1.5 - 4.242 kV
Voltage - Output 1	12 V	12 V

AC/DC CONVERTER 12V 2196W

Part	Efficiency	Type	Number of Outputs	Approval Agency	Current - Output 1	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Features	Mounting Type	Voltage - Isolation	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
Bel Power Solutions TET2200-12-086RA	96 %	Front End	1	CE	183 A	12 V	100 VAC, 180 V	240 VAC, 300 VDC	2196 W	Adjustable Output, Remote Sense, Standby Output	Rack Mount	4.242 kV	ITE (Commercial)	7.74 in	196.5 mm	3.4 in	1.57 "	40 mm	86.3 mm
Bel Power Solutions TET2200-12-086ND	94 %	Front End	1	CE		12 V			2200 W		Rack Mount	1.5 kV	ITE (Commercial)	7.74 in	196.5 mm	3.4 in	1.57 "	40 mm	86.3 mm	183 A	-72 V	-40 V
Bel Power Solutions TET2200-12-086RD	94 %	Front End	1	CE		12 V			2200 W		Rack Mount	1.5 kV	ITE (Commercial)	7.74 in	196.5 mm	3.4 in	1.57 "	40 mm	86.3 mm	183 A	-72 V	-40 V
Bel Power Solutions TET2200-12-086NA	96 %	Front End	1	CE	183 A	12 V	100 VAC, 180 V	240 VAC, 300 VDC	2196 W	Adjustable Output, Remote Sense, Standby Output	Rack Mount	4.242 kV	ITE (Commercial)	7.74 in	196.5 mm	3.4 in	1.57 "	40 mm	86.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 825.00

General part information

Front End DC DC Converter 1 Output 12V 183A -72V Input
