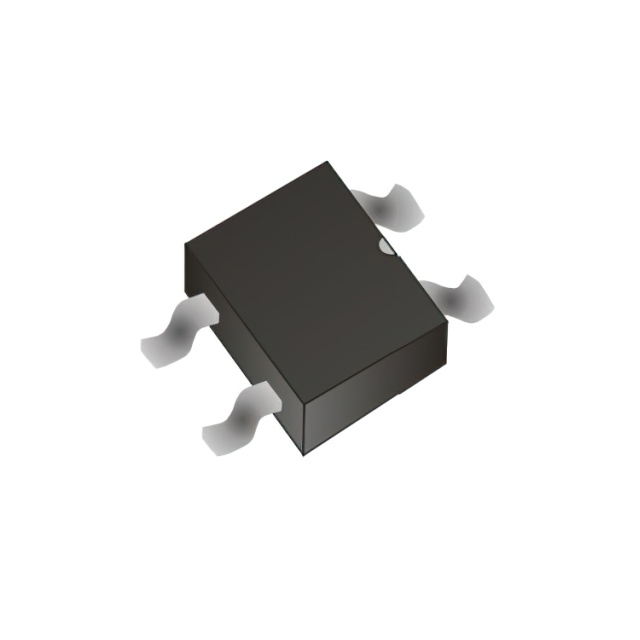

HBS510-HF

Active

Comchip Technology

BRIDGE RECTIFIER 1000V 5A HBS

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECTIFIER 1000V 5A HBS

Technical Specifications

Parameters and characteristics for this part

Specification	HBS510-HF

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	HBS
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	970 mV
Voltage - Peak Reverse (Max) [Max]	1000 V

BRIDGE RECTIFIER 1000V 5A HBS

Part	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Voltage - Peak Reverse (Max) [Max]	Technology
Comchip Technology HBS510-HF	4-SMD, Gull Wing	5 A	970 mV	Surface Mount	5 µA	HBS	-55 °C	150 °C	Single Phase	1000 V	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Surface Mount HBS

Technical documentation and resources

No documents available
