General part information

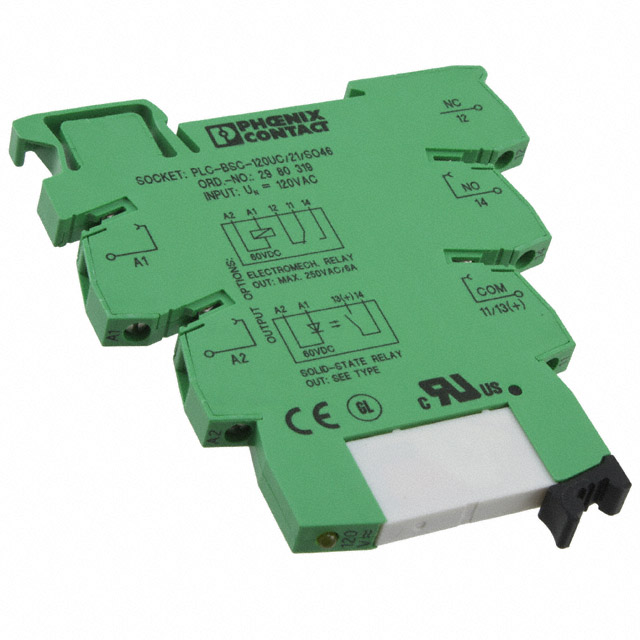

Industrial Relays PLC-RSC-120UC/21 RELAY PN 651-2961118
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 5603593 | PLC-RSC Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE |
| Coil Current | 3.5 mA | 3.5 mA |
| Coil Resistance | 34.29 kOhms | 34.29 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC | 120 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A | 6 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 6 ms | 6 ms |
| Operating Temperature [Max] | 55 °C | 55 °C |
| Operating Temperature [Min] | -40 °C | -40 - -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 15 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
Industrial Relays PLC-RSC-120UC/21 RELAY PN 651-2961118
| Part | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Coil Voltage | Relay Type | Features | Contact Rating (Current) | Coil Type | Operate Time | Approval Agency | Contact Material | Coil Current | Switching Voltage | Coil Resistance | Termination Style | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 5603593 | 15 ms | -40 °C | 55 °C | DIN Rail | 120 VAC, 120 VDC | General Purpose | Lighted Indicator, Socket Included | 6 A | Non Latching | 6 ms | CE, UKCA | Silver Tin Oxide (AgSnO) | 3.5 mA | 250 VAC, 250 VDC | 34.29 kOhms | Screw Terminal | SPDT (1 Form C) |
Phoenix Contact 2966197 | 15 ms | -25 °C | 55 °C | DIN Rail | 120 VAC, 120 VDC | General Purpose | Lighted Indicator, Socket Included | 6 A | Non Latching | 6 ms | CE, UKCA | Silver Tin Oxide (AgSnO) | 3.5 mA | 250 VAC, 250 VDC | 34.29 kOhms | Screw Terminal | SPDT (1 Form C) |
