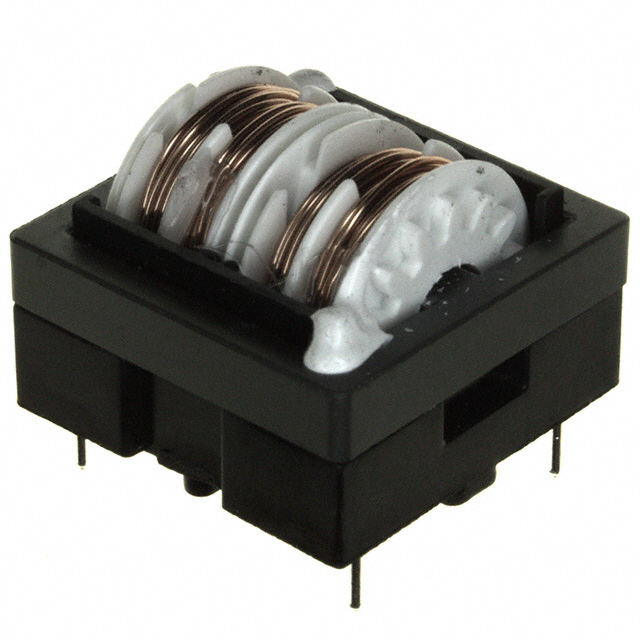

HF2826-253Y1R2-T01
ObsoleteTDK Corporation
CMC 1.2A 2LN TH
HF2826-253Y1R2-T01
ObsoleteTDK Corporation
CMC 1.2A 2LN TH
Description
General part information
HF2826-253Y1R2-T01
2 Line Common Mode Choke Through Hole 1.2A DCR 560mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | HF2826-253Y1R2-T01 |
|---|---|
| Current Rating (Max) | 1.2 A |
| DC Resistance (DCR) (Max) | 560 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.024 in |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.201 in |
| Size / Dimension Width | 1.201 in |
