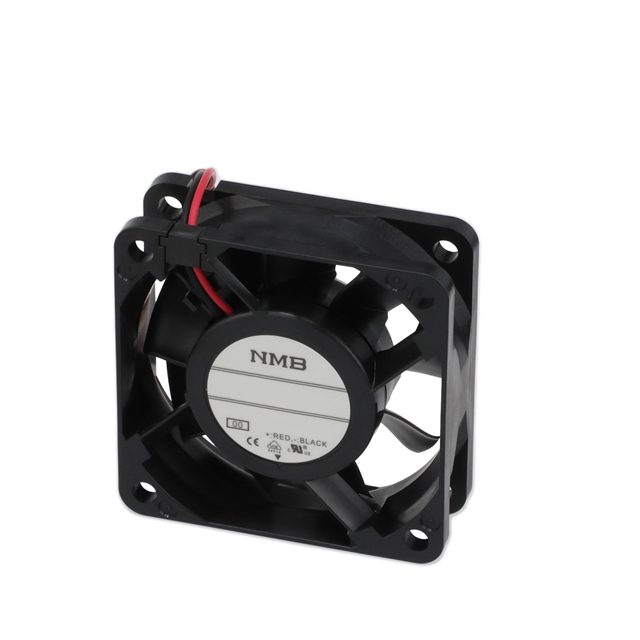

06020SA-24M-EA-00
ActiveNMB TECHNOLOGIES
DC FANS DC AXIAL FAN, 60X60X20MM, 24VDC, 16.6CFM, FLANGE MOUNT, BALL BEARING, LEAD WIRES
Deep-Dive with AI
Search across all available documentation for this part.
06020SA-24M-EA-00
ActiveNMB TECHNOLOGIES
DC FANS DC AXIAL FAN, 60X60X20MM, 24VDC, 16.6CFM, FLANGE MOUNT, BALL BEARING, LEAD WIRES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 06020SA-24M-EA-00 |
|---|---|
| Air Flow | 0.515 mł/min |
| Air Flow | 18.4 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 60 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.44 W |
| RPM | 4000 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 9 V |
| Weight | 55.79 g |
| Weight | 0.123 lb |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
06020SA-24M-EA-00
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 18.4 CFM (0.515mł/min) 2 Wire Leads
