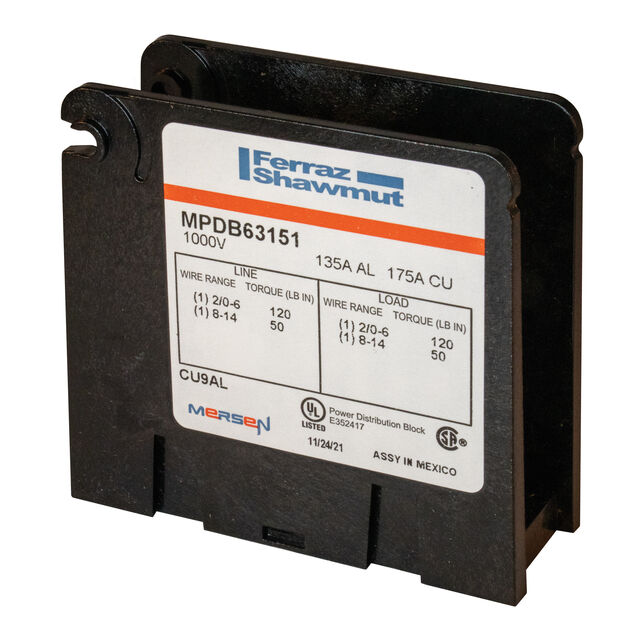

MPDB63151
ActiveMersen USA Newburyport-MA L.L.C.
POWER DISTRIBUTION BLOCK,OPEN ST
MPDB63151
ActiveMersen USA Newburyport-MA L.L.C.
POWER DISTRIBUTION BLOCK,OPEN ST
Description
General part information
MPDB63151
1 Pole Power Distribution Block 175 A 1000 V
Technical Specifications
Parameters and characteristics for this part
| Specification | MPDB63151 |
|---|---|
| Current Rating | 175 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Stud Size | #14CU/AL |
| Line Side Wire Size | 2/0 |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size | 2/0, #14CU/AL |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
