8164 060100

Active

Belden Inc.

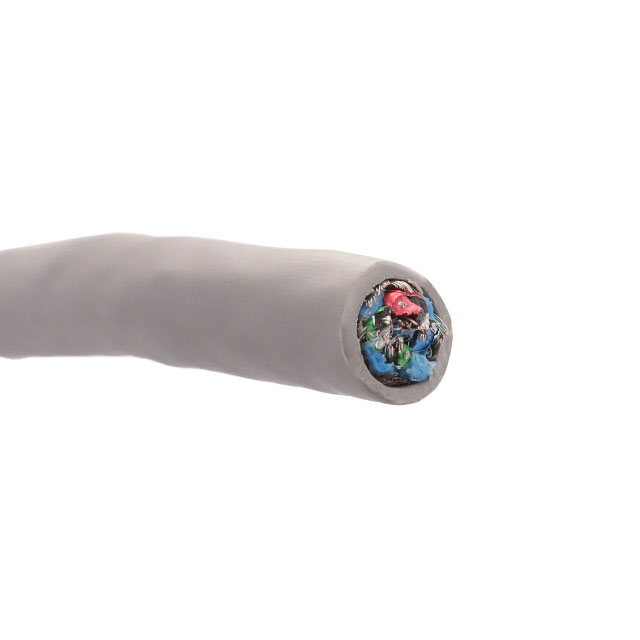

MULTIPAIR CABLE, COMPUTER, SHIELDED, 4 PAIR, 24 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8164 060100

Active

Belden Inc.

MULTIPAIR CABLE, COMPUTER, SHIELDED, 4 PAIR, 24 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8164 060100

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.86 mm
Jacket (Insulation) Diameter [diameter]	0.388 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 2493
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

8164 Series

Part	Shield Coverage	Shield Type	Cable Type	Wire Gauge	Usage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Conductor Material	Voltage	Number of Conductors	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Shield Material	Conductor Insulation	Length	Length	Length [x]	Length [x]
Belden Inc. 8164 0601000	65 % 100 %	Braid Foil	Multi-Pair	24 AWG	Computer	Drain Wire	-40 °C	60 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	300 V	8	UL Style 2493	32 AWG	7	0.048 in	1.219 mm	9.86 mm	0.388 in	Chrome	Aluminum Copper Tinned	Foam Polyethylene (FPE)	1000 ft	304.8 m
Belden Inc. 8164 060500	65 % 100 %	Braid Foil	Multi-Pair	24 AWG	Computer	Drain Wire	-40 °C	60 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	300 V	8	UL Style 2493	32 AWG	7	0.048 in	1.219 mm	9.86 mm	0.388 in	Chrome	Aluminum Copper Tinned	Foam Polyethylene (FPE)			500 '	152.4 m
Belden Inc. 8164 060100	65 % 100 %	Braid Foil	Multi-Pair	24 AWG	Computer	Drain Wire	-40 °C	60 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned		8	UL Style 2493	32 AWG	7	0.048 in	1.219 mm	9.86 mm	0.388 in	Chrome	Aluminum Copper Tinned	Foam Polyethylene (FPE)			100 ft	30.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1061.85
		2	$ 1009.15
		3	$ 979.34
		5	$ 942.79
		7	$ 919.32
		10	$ 894.95
Newark	Spool of 100	1	$ 1295.57
		5	$ 1245.46
		10	$ 1202.51

Description

General part information

8164 Series

The 8164 060100 is a 100ft 4-pair 8-conductor low capacitance shielded Computer Cable with stranded tinned copper conductors and foam polyethylene insulation. It has twisted pair conductors, 100% aluminium foil-polyester tape inner and outer shield coverage, 65% overall tinned copper braid outer shield coverage.
