2011260002 - 2011260002

2011260002

Active
Molex

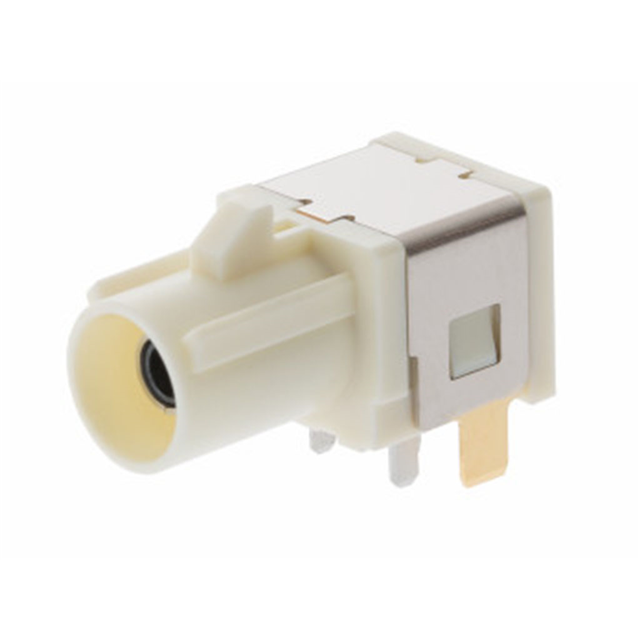

50 OHMS, FAKRA JACK, RIGHT-ANGLE, THROUGH-HOLE, GOLD (AU) PLATED CONTACTS, KEYING OPTION B, CREAM WHITE, TAPE AND REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsApplication SpecificationProduct Specification+1
2011260002 - 2011260002

2011260002

Active
Molex

50 OHMS, FAKRA JACK, RIGHT-ANGLE, THROUGH-HOLE, GOLD (AU) PLATED CONTACTS, KEYING OPTION B, CREAM WHITE, TAPE AND REEL

Deep-Dive with AI

DocumentsApplication SpecificationProduct Specification+1

Technical Specifications

Parameters and characteristics for this part

Specification2011260002
Body MaterialPhosphor Bronze
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMB, Fakra
Connector TypeMale Pin, Jack
Contact TerminationSolder
Dielectric MaterialLiquid Crystal Polymer (LCP), Glass Filled
Fastening TypeLocking Ramp
FeaturesCode B
Frequency - Max [Max]6000 MHz
Housing ColorWhite, Cream
Impedance50 Ohms
Mounting TypeThrough Hole, Right Angle
Number of Ports1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Shield TerminationSolder
Voltage Rating60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.04
10$ 1.74
100$ 1.44
Tape & Reel (TR) 300$ 1.19
600$ 1.13
900$ 1.09
1500$ 1.05
2100$ 1.02
3000$ 1.00
7500$ 0.94
SagerN/A 300$ 1.21
600$ 1.12
1200$ 1.08
2700$ 1.05
6600$ 1.01

Description

General part information

201126 Series

50 Ohms, FAKRA Jack, Right-Angle, Through-Hole, Gold (Au) Plated Contacts, Keying Option B, Cream White, Tape and Reel
