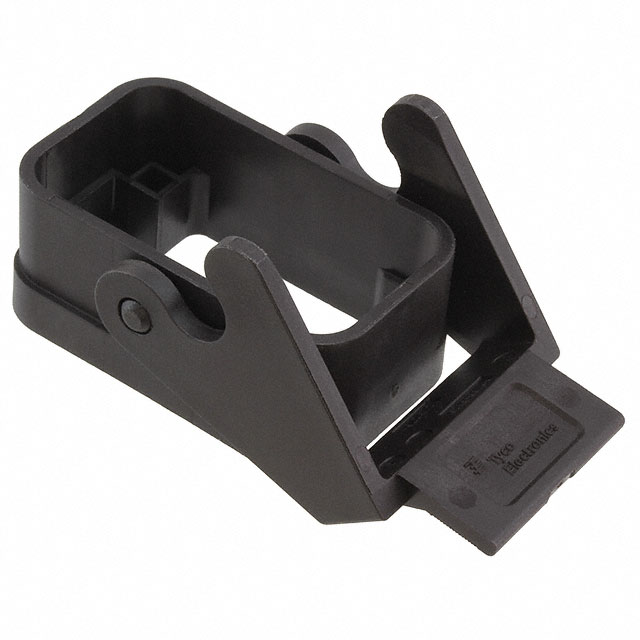

1103072-1
ActiveTE Connectivity AMP Connectors
CONN HSG
Deep-Dive with AI
Search across all available documentation for this part.
1103072-1
ActiveTE Connectivity AMP Connectors
CONN HSG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1103072-1 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Black |
| Housing Material | Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Size | Q |
| Size / Dimension [x] | 45.6 mm |
| Size / Dimension [x] | 1.795 in |
| Size / Dimension [y] | 1.126 in |
| Size / Dimension [y] | 28.6 mm |
| Size / Dimension [z] | 18.8 mm |
| Size / Dimension [z] | 0.74 in |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1103072 Series
CONN HSG
| Part | Style | Connector Type | Size | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Housing Material | Housing Color | Ingress Protection | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1103072-1 | Bottom Entry | Base - Panel Mount | Q | 1.126 in | 28.6 mm | 45.6 mm | 18.8 mm | 1.795 in | 0.74 in | Glass Filled, Nylon 6/6, Polyamide (PA66) | Black | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom |
Description
General part information
1103072 Series
Base - Panel Mount Connector Bottom Entry Q IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
