VLF403215MT-2R2M
ObsoleteTDK Corporation
FIXED IND 2.2UH 3.14A 43MOHM SMD
VLF403215MT-2R2M
ObsoleteTDK Corporation
FIXED IND 2.2UH 3.14A 43MOHM SMD
Description
General part information
VLF403215MT-2R2M

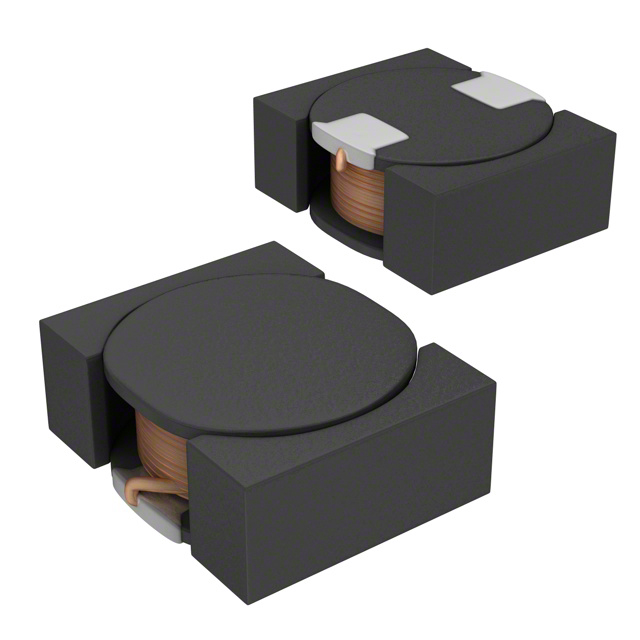

2.2 µH Shielded Drum Core, Wirewound Inductor 3.14 A 43mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLF403215MT-2R2M |
|---|---|
| Current - Saturation (Isat) | 2.03 A |
| Current Rating | 3.14 A |
| DC Resistance (DCR) (Max) | 43 mOhm |
| Height - Seated (Max) | 0.059 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
