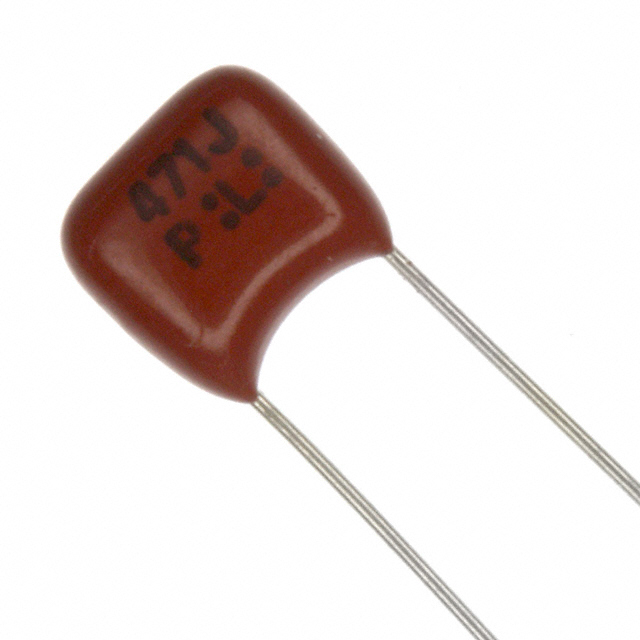

Specification	ECQ-P1H471JZ

Applications	Switching, High Frequency
Capacitance	470 pF
Dielectric Material	Polypropylene (PP)
Height - Seated (Max)	0.492 in
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Size / Dimension Length	0.335 in
Size / Dimension Width	0.177 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	50 V

ECQ-P1 Series

...

Part	Package / Case	Termination	Capacitance	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Tolerance	Applications	Dielectric Material	Lead Spacing	Voltage Rating - DC	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length
Panasonic Electronic Components ECQ-P1H184FZW	Radial	PC Pins	0.18 µF	Through Hole	-40 °C	85 °C	1 %	High Frequency Switching	Polypropylene (PP)	0.394 in	50 V	0.827 in	0.354 in	0.787 in
Panasonic Electronic Components ECQ-P1H394FZW	Radial	PC Pins	0.39 µF	Through Hole	-40 °C	85 °C	1 %	High Frequency Switching	Polypropylene (PP)	0.492 in	50 V	0.984 in	0.433 in	0.886 in
Panasonic Electronic Components ECQ-P1H102GZ	Radial	PC Pins	1000 pF	Through Hole	-40 °C	85 °C	2 %	High Frequency Switching	Polypropylene (PP)	0.197 in	50 V	0.492 in	0.177 in	0.335 in
Panasonic Electronic Components ECQ-P1H204FZW	Radial	PC Pins	0.2 µF	Through Hole	-40 °C	85 °C	1 %	High Frequency Switching	Polypropylene (PP)	0.394 in	50 V	0.846 in	0.374 in	0.787 in
Panasonic Electronic Components ECQ-P1H104GZW	Radial	PC Pins	0.1 µF	Through Hole	-40 °C	85 °C	2 %	High Frequency Switching	Polypropylene (PP)	0.295 in	50 V	0.768 in	0.295 in	0.669 in
Panasonic Electronic Components ECQ-P1H121JZ	Radial	PC Pins	120 pF	Through Hole	-40 °C	85 °C	5 %	High Frequency Switching	Polypropylene (PP)	0.197 in	50 V	0.492 in	0.177 in	0.335 in
Panasonic Electronic Components ECQ-P1H112FZW	Radial	PC Pins	1100 pF	Through Hole	-40 °C	85 °C	1 %	High Frequency Switching	Polypropylene (PP)	0.197 in	50 V	0.492 in	0.177 in	0.335 in
Panasonic Electronic Components ECQ-P1H563GZ	Radial	PC Pins	56 nF	Through Hole	-40 °C	85 °C	2 %	High Frequency Switching	Polypropylene (PP)	0.197 in	50 V	0.728 in	0.256 in	0.571 in
Panasonic Electronic Components ECQ-P1H271JZ	Radial	PC Pins	270 pF	Through Hole	-40 °C	85 °C	5 %	High Frequency Switching	Polypropylene (PP)	0.197 in	50 V	0.492 in	0.177 in	0.335 in
Panasonic Electronic Components ECQ-P1H222GZW	Radial	PC Pins	2200 pF	Through Hole	-40 °C	85 °C	2 %	High Frequency Switching	Polypropylene (PP)	0.197 in	50 V	0.492 in	0.177 in	0.335 in
