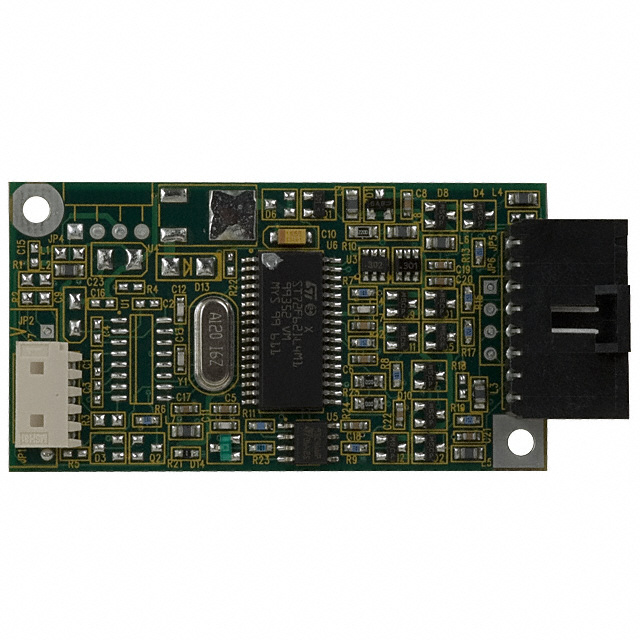

SC801U

Active

LCD DRVR BRD 8 WIRE USB

Search across all available documentation for this part.

Active

LCD DRVR BRD 8 WIRE USB

Technical Specifications

Parameters and characteristics for this part

LCD DRVR BRD 8 WIRE USB

Part	Touchscreen	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Interface	Voltage - Input	Operating Temperature [Max]	Operating Temperature [Min]
3M SC801U	8 Wire Resistive	1.3 in	33 mm	69.9 mm	2.75 in	USB	5 VDC	65 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SC800 8 Wire Resistive LCD Driver/Controller 5V USB 2.75" L x 1.30" W (69.9mm x 33mm)

Technical documentation and resources

No documents available
