43402C-R
ActiveMurata Power Solutions Inc.

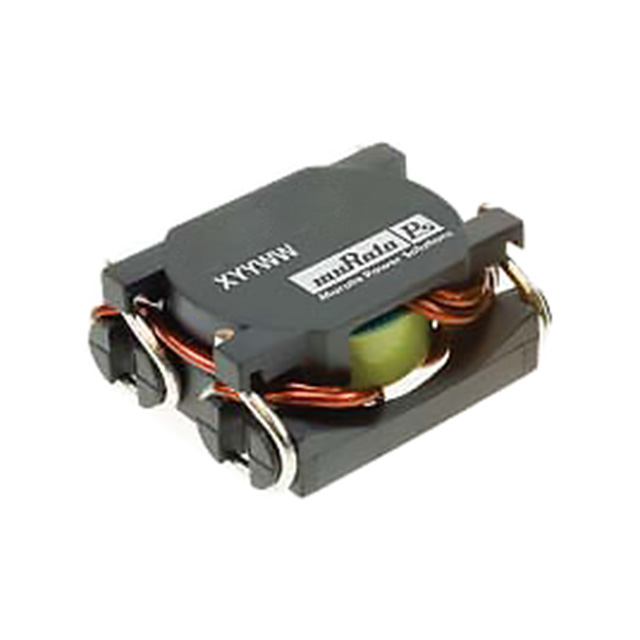

FIXED IND 4UH 22.4A 3.1MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPower Magnetics Selection Guide
43402C-R
ActiveMurata Power Solutions Inc.
FIXED IND 4UH 22.4A 3.1MOHM SMD
Deep-Dive with AI
DocumentsPower Magnetics Selection Guide
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 43402C-R | 43 Series |
|---|---|---|
| Current Rating (Amps) | 22.4 A | 21 - 22.4 A |
| DC Resistance (DCR) [Max] | 3.1 mOhm | 2.22 - 3.1 mOhm |
| Frequency - Self Resonant | 69 MHz | 69 - 106 MHz |
| Inductance | 4 µH | 2.1 - 4 µH |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Nonstandard | Nonstandard |
| Shielding | Unshielded | Unshielded |
| Size / Dimension [x] | 1.11 in | 0.909 - 1.11 in |
| Size / Dimension [x] | 28.2 mm | 23.1 - 28.2 mm |
| Size / Dimension [y] | 25.4 mm | 20.3 - 25.4 mm |
| Size / Dimension [y] | 25.4 mm | 0.799 - 25.4 mm |
| Tolerance | 15 % | 15 % |
| Type | Toroidal | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
43 Series
FIXED IND 4UH 22.4A 3.1MOHM SMD
| Part | Shielding | Mounting Type | Current Rating (Amps) | Tolerance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Type | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Self Resonant | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 43402C-R | Unshielded | Surface Mount | 22.4 A | 15 % | 1.11 in | 28.2 mm | 25.4 mm | 25.4 mm | Nonstandard | Toroidal | 3.1 mOhm | 100 kHz | 125 °C | -40 °C | 69 MHz | 4 µH |
Murata Power Solutions Inc. 43212C | Unshielded | Surface Mount | 21 A | 15 % | 0.909 " | 23.1 mm | 20.3 mm | 0.799 in | Nonstandard | Toroidal | 2.22 mOhm | 100 kHz | 125 °C | -40 °C | 106 MHz | 2.1 µH |
Murata Power Solutions Inc. 43212C-R | Unshielded | Surface Mount | 21 A | 15 % | 0.909 " | 23.1 mm | 20.3 mm | 0.799 in | Nonstandard | Toroidal | 2.22 mOhm | 100 kHz | 125 °C | -40 °C | 106 MHz | 2.1 µH |
Description
General part information
43 Series
4 µH Unshielded Toroidal Inductor 22.4 A 3.1mOhm Max Nonstandard
