M1AXA-3036R

Active

IDC CABLE - MSC30A/MC34M/X

Search across all available documentation for this part.

Active

IDC CABLE - MSC30A/MC34M/X

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1AXA-3036R	M1AXA Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Length [x]	3 ft	3 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	30	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

IDC CABLE - MSC16A/MC16G/X

Part	Number of Positions	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Number of Rows	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Connector Type	Contact Finish	Shielding	Number of Positions	Color
3M M1AXA-1636J	16	0.05 "	1.27 mm	0.1 in	2.54 mm	2	3 ft	914.4 mm	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded
3M M1AXA-2036J		0.05 "	1.27 mm	0.1 in	2.54 mm	2	3 ft	914.4 mm	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded	20
3M M1AXA-1440K		0.05 "	1.27 mm	0.1 in	2.54 mm	2	3.34 ft	1.02 m	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded	14	Multiple, Twisted Pair (Flat)
3M M1AXA-3036R		0.05 "	1.27 mm	0.1 in	2.54 mm	2	3 ft	914.4 mm	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded	30	Multiple, Ribbon
3M M1AXA-1036J		0.05 "	1.27 mm	0.1 in	2.54 mm	2	3 ft	914.4 mm	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded	10
3M M1AXA-1436R		0.05 "	1.27 mm	0.1 in	2.54 mm	2	3 ft	914.4 mm	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded	14	Multiple, Ribbon
3M M1AXA-5036J		0.05 "	1.27 mm	0.1 in	2.54 mm	2	3 ft	914.4 mm	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded	50
3M M1AXA-5040K		0.05 "	1.27 mm	0.1 in	2.54 mm	2	3.34 ft	1.02 m	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded	50	Multiple, Twisted Pair (Flat)
3M M1AXA-3436R		0.05 "	1.27 mm	0.1 in	2.54 mm	2	3 ft	914.4 mm	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded	34	Multiple, Ribbon
3M M1AXA-6036J		0.05 "	1.27 mm	0.1 in	2.54 mm	2	3 ft	914.4 mm	0.76 Ám	30 Áin	IDC	Socket to Cable	Gold	Unshielded	60

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

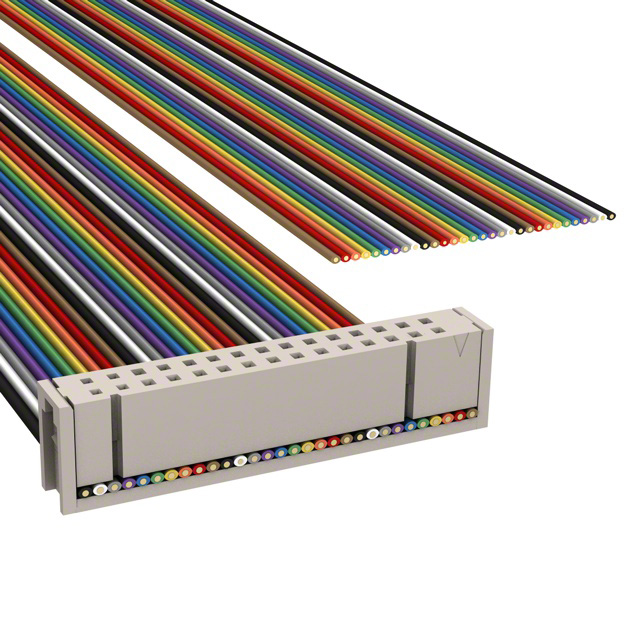

30 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
