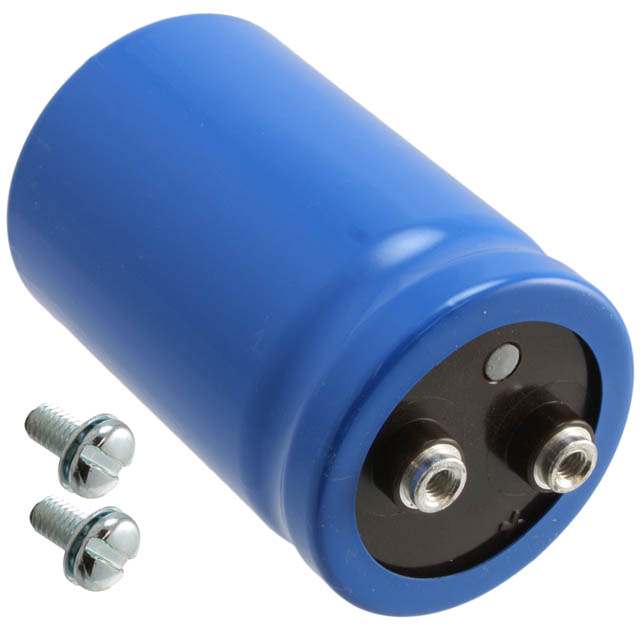

Specification	CGS132T350V3C

Applications	General Purpose
Capacitance	1300 µF
ESR (Equivalent Series Resistance)	85 mOhm
Height - Seated (Max)	3.125 in
Lifetime	2000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	6.45 A, 4.3 A
Size / Dimension Diameter	2 in
Tolerance (Negative)	10 %
Tolerance (Positive)	50 %
Voltage - Rated	350 V
