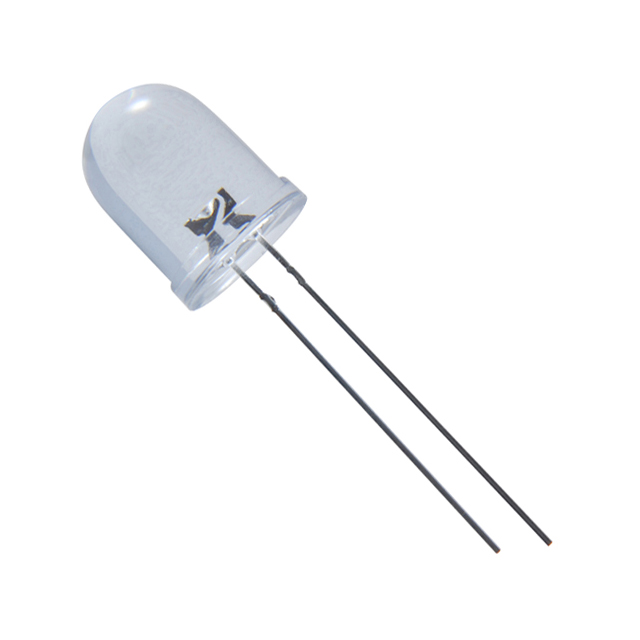

NTE30131
ActiveNTE Electronics, Inc
INFRARED EMITTING DIODE
NTE30131
ActiveNTE Electronics, Inc
INFRARED EMITTING DIODE
Description
General part information
NTE30131
Infrared (IR) Emitter 940nm 1.3V 100mA 20mW/sr @ 20mA (Typ) 35° Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE30131 |
|---|---|
| Current - DC Forward (If) (Max) | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Radiant Intensity (Ie) Min (Typical) | 20 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 1.3 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
