1106610
ActivePhoenix Contact

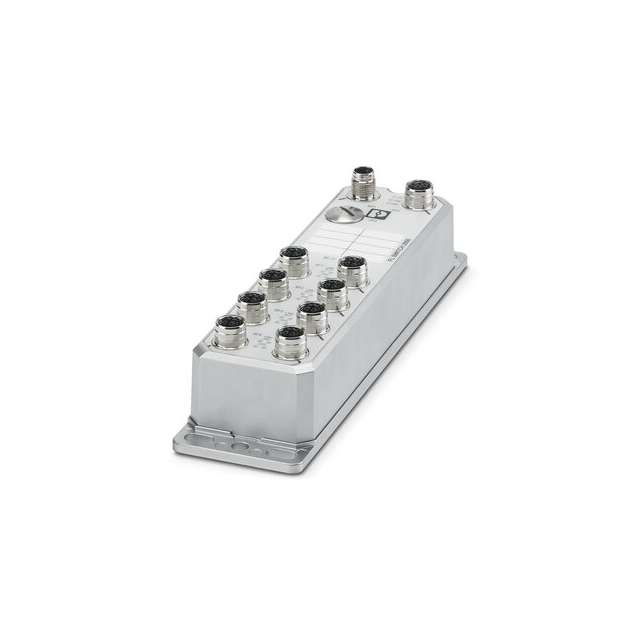

MANAGED SWITCH 2000, 8 M12 PORTS
1106610
ActivePhoenix Contact
MANAGED SWITCH 2000, 8 M12 PORTS
Description
General part information
1106610
Network Switch - Managed 8 Ports IP65, IP66, IP67
Technical Specifications
Parameters and characteristics for this part
| Specification | 1106610 |
|---|---|
| Configuration | Fixed |
| Connector Type | M12 |
| Copper Ports | 8 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Ingress Protection | IP67, IP65, IP66 |
| Mounting Type | Wall Mount |
| Number of Ports | 8 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Switch - Managed |
| Voltage - Input (Maximum) | 57 V |
| Voltage - Input (Minimum) | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
