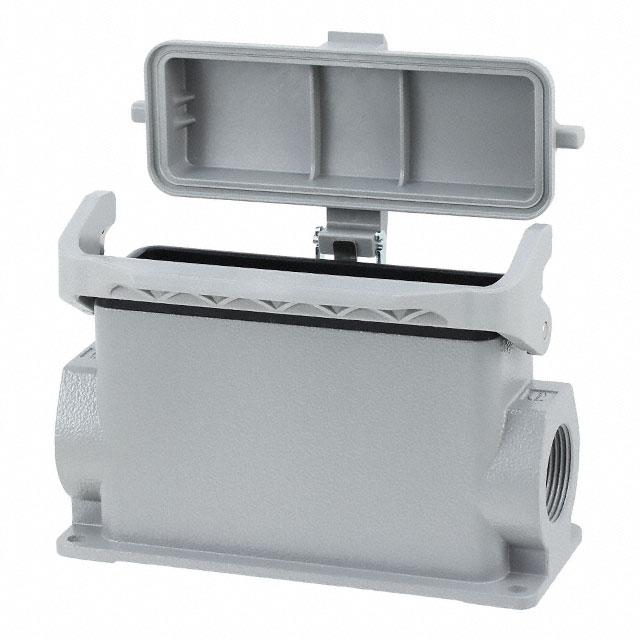

Specification	09300240295

Connector Type	Base - Box Mount
Features	Feed Through, Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	24B
Size / Dimension Height	3.181 in
Size / Dimension Length	5.669 in
Size / Dimension Width	2.244 in
Style	Side Entry
Thread Size	PG21

09300240 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Housing Color	Lock Location	Ingress Protection IP Rating	Ingress Protection Description	Housing Material	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Features	Size	Connector Type	Housing Finish	Style	Thread Size
HARTING 09300240304	125 °C	-40 °C	Gray	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	Aluminum Die Cast	5.512 in	1.138 in	1.709 in	Cover	24B	Base - Panel Mount	Powder Coated	Bottom Entry
HARTING 09300240307	125 °C	-40 °C	Gray	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	Aluminum Die Cast	5.512 in	1.138 in	1.709 in		24B	Base - Panel Mount	Powder Coated	Bottom Entry
HARTING 09300240730	125 °C	-40 °C	Gray	Locking Clip (2) on Hood Top	IP65	Dust Tight Water Resistant	Aluminum Die Cast	4.724 in	3.087 in	1.693 in	Cable Cable to Cable	24B	Hood - Coupling	Powder Coated	Bottom Entry Top or Bottom Entry	PG21
HARTING 09300240585				Locking Clip (1) on Hood				4.724 in	2.992 in	1.693 in		24B	Hood		Side Entry	PG29
HARTING 09300240481	125 °C	-40 °C	Gray	Locking Clip (1) on Hood	IP65	Dust Tight Water Resistant	Aluminum Die Cast	4.724 in	2.992 in	1.693 in		24B	Hood	Powder Coated	Top Entry	PG29
HARTING 09300240543				Locking Clip (1) on Base Bottom				4.724 in	2.992 in	1.693 in		24B	Hood		Side Entry	PG29
HARTING 09300240447				Locking Clip (1) on Base Bottom				4.724 in	2.992 in	1.693 in		24B	Hood		Dual Top Entry	PG21
HARTING 09300240318	125 °C	-40 °C	Gray	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	Aluminum Die Cast	5.512 in	1.138 in	1.709 in	Cover	24B	Base - Panel Mount	Powder Coated	Bottom Entry
HARTING 09300240221	125 °C	-40 °C	Gray	Locking Clip (2) on Hood	IP65	Dust Tight Water Resistant	Aluminum Die Cast	5.669 in	3.181 in	2.244 in	Cover	24B	Base - Box Mount	Powder Coated	Side Entry	PG29
HARTING 09300240461	125 °C	-40 °C	Gray	Locking Clip (2) on Base Bottom	IP65	Dust Tight Water Resistant	Aluminum Die Cast	4.724 in	2.992 in	1.693 in		24B	Hood	Powder Coated	Dual Top Entry	PG29
