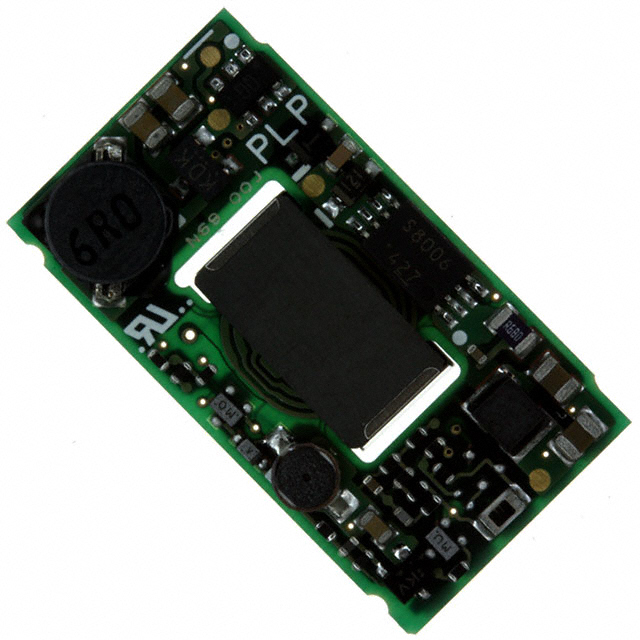

MPD5D018S

Active

Murata Power Solutions Inc.

ISOLATED DC/DC CONVERTERS - SMD

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED DC/DC CONVERTERS - SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 2.5V 5W

Part	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Voltage - Output 1	Features	Type	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Voltage - Isolation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Max) [Max]
Murata Power Solutions Inc. MPD5D016S	36 V	1	80 %	2.5 V	OCP, OVP, Remote On/Off	Isolated Module	Active Low, Enable	14.6 mm	1.06 "	0.17 in	0.57 in	26.8 mm	4.4 mm	ITE (Commercial)	1.5 kV	Surface Mount	85 °C	-40 °C	7-SMD Module	1.2 A	5 W	75 V
Murata Power Solutions Inc. MPD5D018S	36 V	1	85 %	5 V	OCP, OVP, Remote On/Off	Isolated Module	Active Low, Enable	14.6 mm	1.06 "	0.17 in	0.57 in	26.8 mm	4.4 mm	ITE (Commercial)	1.5 kV	Surface Mount	85 °C	-40 °C	7-SMD Module	1 A	5 W	75 V
Murata Power Solutions Inc. MPD5D013S	36 V	1	70 %	1.5 V	OCP, OVP, Remote On/Off	Isolated Module	Active Low, Enable	14.6 mm	1.06 "	0.17 in	0.57 in	26.8 mm	4.4 mm	ITE (Commercial)	1.5 kV	Surface Mount	85 °C	-40 °C	7-SMD Module	800 mA	5 W	75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 1A 36V - 75V Input
