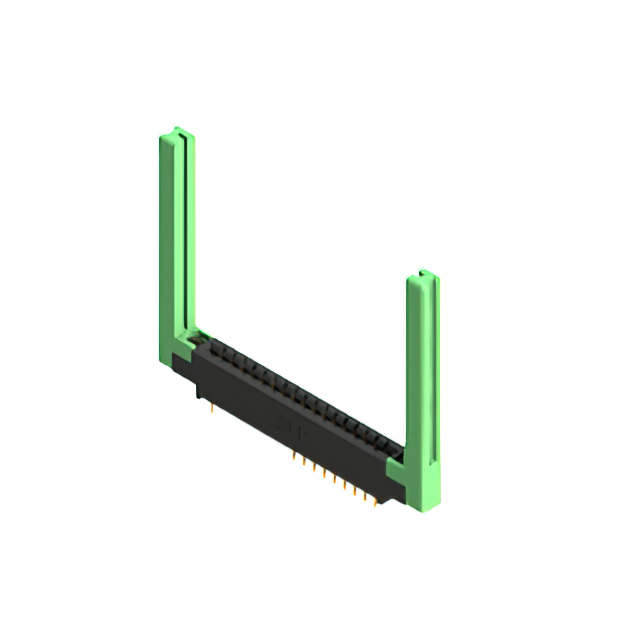

CONN EDGE DUAL FMALE 34POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-034-559-858
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-034-559-858 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
387-034 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Gender | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Termination | Contact Material | Mounting Type | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Contact Type | Card Type | Number of Positions | Termination Rows | Pitch [x] | Pitch [x] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 34 | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Single | Wire Wrap | Copper Alloy | Through Hole | Polyester Thermoplastic | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1 | Cantilever | Non Specified - Single Edge | 34 | 1 | 0.156 in | 3.96 mm | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Dual | Wire Wrap | Copper Alloy | Through Hole Right Angle | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 2 | Cantilever | Non Specified - Dual Edge | 34 | 2 | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Dual | Solder | Copper Alloy | Through Hole | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 2 | Cantilever | Non Specified - Dual Edge | 34 | 2 | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Dual | Wire Wrap | Copper Alloy | Through Hole | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | 2 | Cantilever | Non Specified - Dual Edge | 34 | 2 | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | 34 | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Single | Wire Wrap | Copper Alloy | Through Hole | Polyester Thermoplastic | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 1 | Cantilever | Non Specified - Single Edge | 34 | 1 | 0.156 in | 3.96 mm | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Dual | Wire Wrap | Copper Alloy | Through Hole Right Angle | Polyester Thermoplastic | 2 | Cantilever | Non Specified - Dual Edge | 34 | 2 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Dual | Solder | Copper Alloy | Through Hole | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 2 | Cantilever | Non Specified - Dual Edge | 34 | 2 | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Dual | Wire Wrap | Copper Alloy | Through Hole | Polyester Thermoplastic | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 2 | Cantilever | Non Specified - Dual Edge | 34 | 2 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 34 | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Single | Solder | Copper Alloy | Through Hole | Polyester Thermoplastic | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 1 | Cantilever | Non Specified - Single Edge | 34 | 1 | 0.156 in | 3.96 mm | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Dual | Solder Eyelet(s) | Copper Alloy | Board Edge Straddle Mount | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Cantilever | Non Specified - Dual Edge | 34 | 2 | 0.156 in | 3.96 mm | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.27 | |
Description
General part information
387-034 Series
34 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
