917992-7

Active

TE Connectivity Raychem Cable Protection

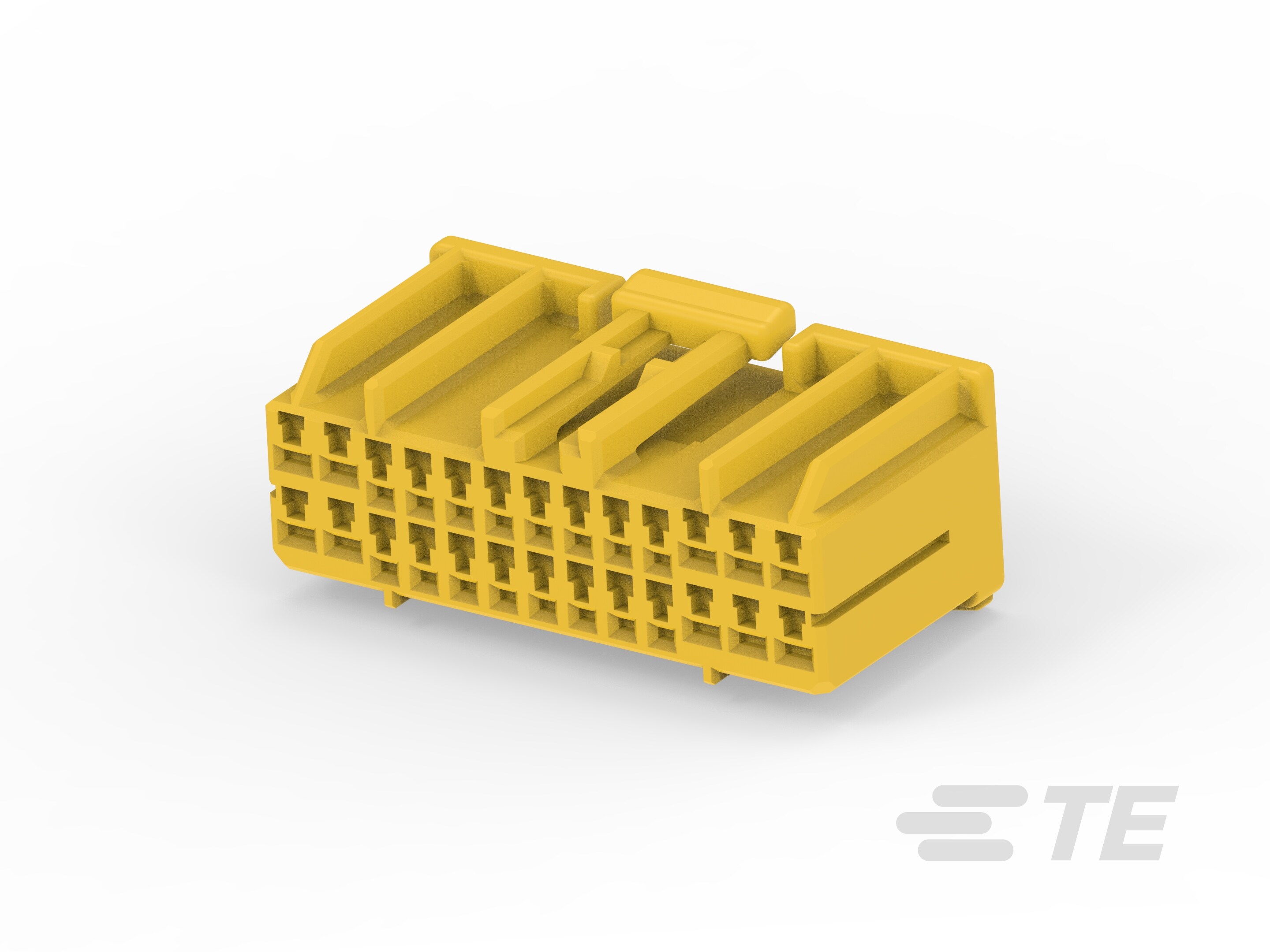

HYBRID MK-2 PLUG HSG ASSY 26P

Search across all available documentation for this part.

Uncategorized

Active

TE Connectivity Raychem Cable Protection

HYBRID MK-2 PLUG HSG ASSY 26P

Technical Specifications

Parameters and characteristics for this part

Specification	917992-7

null

Part	Insulation Material	Contact Termination	Note	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows	Fastening Type	Color	Row Spacing	Row Spacing	Connector Type
TE Connectivity Raychem Cable Protection 917992-1	Polybutylene Terephthalate (PBT)	Crimp	Contacts Not Included	Free Hanging (In-Line)	Female Socket	-30 ░C	105 ░C	26	2	Latch Lock	White	0.205 in	5.2 mm	Plug
TE Connectivity Raychem Cable Protection 917992-7
TE Connectivity Raychem Cable Protection 917992-6	Polybutylene Terephthalate (PBT)	Crimp	Contacts Not Included	Free Hanging (In-Line)	Female Socket	-30 ░C	105 ░C	26	2	Latch Lock	Gray	0.205 in	5.2 mm	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

HYBRID MK-2 PLUG HSG ASSY 26P

Technical documentation and resources

No documents available
