Description
General part information
6AG40210AB110BA0

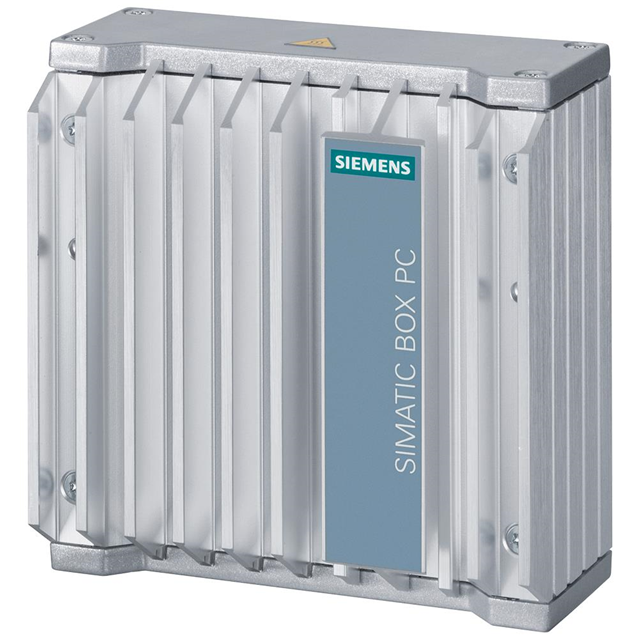

SIMATIC IPC127E
Technical Specifications
Parameters and characteristics for this part
| Specification | 6AG40210AB110BA0 |
|---|---|
| Approval Agency | CE, UL |
| Core Processor | Intel® Atom® E3940 |
| Core Processor Core Count | 4 Core |
| Core Processor Frequency | 1.6 GHz |
| Display Type | No Display |
| Ingress Protection | IP40 |
| Memory Max Capacity | 4 GB |
| Memory Type | DDR4 |
| Mounting Type | Panel Mount |
| Operating System | Windows 10 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Storage Capacity | 64 GB |
| Storage Type | SSD |
| Type | Box PC |
| Voltage - Supply | 24 VDC |
