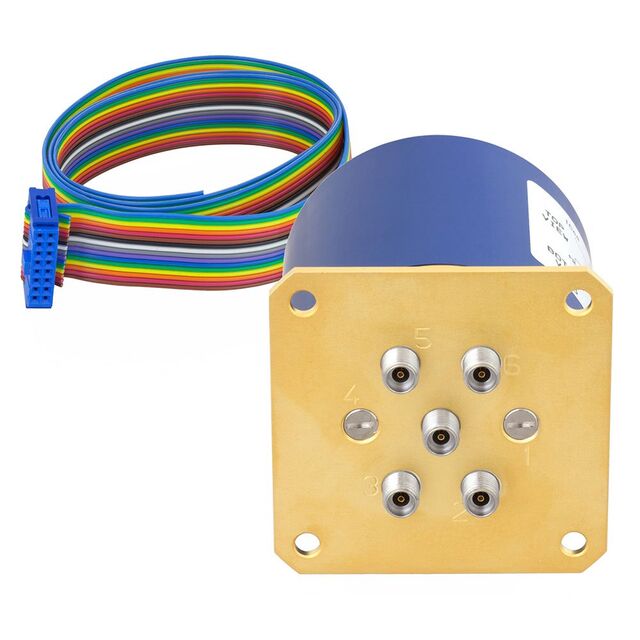

FMSW6334
ObsoleteFairview Microwave
EM RELAY SWITCH 40 GHZ 24 V 2.92
FMSW6334
ObsoleteFairview Microwave
EM RELAY SWITCH 40 GHZ 24 V 2.92
Description
General part information
FMSW6334
RF Switch IC Radar, VSAT SP4T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW6334 |
|---|---|
| Circuit | SP4T |
| Frequency Range (Max) | 40 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss (max) | 0.9 dB |
| Isolation (Min) | 60 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | VSAT, Radar |
| Test Frequency | 40 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 20 VDC |
